3-87175-0

Active

TE Connectivity AMP Connectors

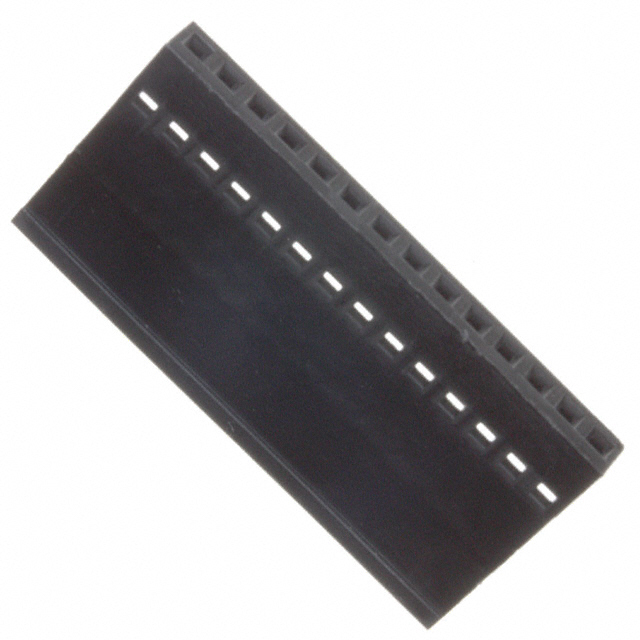

CONN RCPT HSG 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-87175-0

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 14POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.47
		10	$ 2.20
		25	$ 2.19
		50	$ 2.17
		100	$ 1.98

Description

General part information

87175 Series

14 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-87175-0	87175 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polyester, Glass Filled	Polyester, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	14	1 - 14
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

87175 Series

CONN RCPT HSG 3POS 2.54MM

Part	Mounting Type	Contact Termination	Connector Type	Insulation Material	Number of Rows	Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Note	Color	Number of Positions
TE Connectivity AMP Connectors 87175-8	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	1	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Contacts Not Included	Black
TE Connectivity AMP Connectors 2-87175-4	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	1	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Contacts Not Included	Black	11
TE Connectivity AMP Connectors 2-87175-8	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	1	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Contacts Not Included	Black	13
TE Connectivity AMP Connectors 2-87175-1	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	1	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Contacts Not Included	Black	10
TE Connectivity AMP Connectors 1-87175-4	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	1	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Contacts Not Included	Black	6
TE Connectivity AMP Connectors 1-87175-5	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	1	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Contacts Not Included	Black	7
TE Connectivity AMP Connectors 2-87175-5	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	1	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Contacts Not Included	Black	12
TE Connectivity AMP Connectors 1-87175-0	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	1	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Contacts Not Included	Black	4
TE Connectivity AMP Connectors 87175-6	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	1	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Contacts Not Included	Black	2
TE Connectivity AMP Connectors 87175-2	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	1	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Contacts Not Included	Black	1
