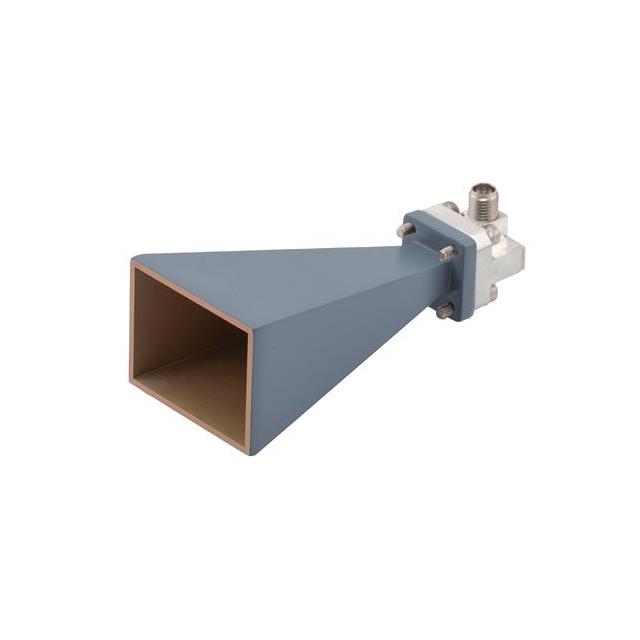

PEWAN028-20KF
ActivePasternack
WR28 GAIN HRN 26.5-40GHZ 15DBI
PEWAN028-20KF
ActivePasternack
WR28 GAIN HRN 26.5-40GHZ 15DBI
Description
General part information
PEWAN028-20KF
RF ANTENNA Horn 2.92mm Female Waveguide Flange Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWAN028-20KF |
|---|---|
| Antenna Type | Horn |
| Frequency (Center/Band) | 33.25 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 40 GHz |
| Frequency Range (Min) | 26.5 GHz |
| Gain | 20 dBi |
| Height (Max) | 3.556 in |
| Mounting Type | Waveguide Flange Mount |
| Number of Bands | 1 |
| Termination | Female |
| Termination Gender | Female |
| Termination Pin Count | 0 pins |
| Termination Pitch | 2.92 mm |
| Termination Rows | 0 rows |
| Termination Size | 2.92 mm |
| VSWR | 1.3 |
