2-1123724-2
ActiveTE Connectivity AMP Connectors
3.96EP HDR ASSY 2(3)P YELLOW
Deep-Dive with AI
Search across all available documentation for this part.
2-1123724-2
ActiveTE Connectivity AMP Connectors
3.96EP HDR ASSY 2(3)P YELLOW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1123724-2 | 1123724 Series |
|---|---|---|
| Applications | General Purpose, Industrial, Lighting | General Purpose, Industrial, Lighting |
| Connector Type | Header | Header |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Finish Thickness - Post | 31.5 µin | 31.5 µin |
| Contact Finish Thickness - Post | 0.8 µm | 0.8 µm |
| Contact Length - Mating | 7.7 mm | 7.7 mm |
| Contact Length - Mating | 0.303 in | 0.303 in |
| Contact Length - Post | 0.146 in | 0.146 in |
| Contact Length - Post | 3.7 mm | 3.7 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | - | Glow Wire Compliant |
| Insulation Color | Natural | Natural, Black, Red |
| Insulation Height | 0.362 in | 0.362 in |
| Insulation Height | 9.2 mm | 9.2 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Nylon, Polyamide (PA), Glass Filled, Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-2, UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | - | 7 - 9 |
| Number of Positions Loaded | All | All |
| Number of Positions Loaded | - | 5 |
| Number of Positions Loaded | - | 2 - 4 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Overall Contact Length | 14.4 mm | 14.4 mm |
| Overall Contact Length | 0.567 " | 0.567 " |
| Pitch - Mating | 0.156 in | 0.156 in |
| Pitch - Mating | 3.96 mm | 3.96 mm |
| Shrouding | Shrouded - 1 Wall | Shrouded - 1 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.26 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.13 | |||
1123724 Series
CONN HEADER VERT 9POS 3.96MM
| Part | Connector Type | Termination | Contact Finish - Post | Number of Positions | Voltage Rating | Overall Contact Length | Overall Contact Length | Shrouding | Insulation Height | Insulation Height | Style | Fastening Type | Mounting Type | Contact Type | Number of Positions Loaded [custom] | Contact Length - Mating | Contact Length - Mating | Contact Length - Post | Contact Length - Post | Number of Rows | Contact Material | Insulation Material | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Material Flammability Rating | Current Rating (Amps) | Contact Shape | Insulation Color | Features | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 7-1123724-5 | Header | Solder | Tin | 9 | 250 VAC | 14.4 mm | 0.567 " | Shrouded - 1 Wall | 0.362 in | 9.2 mm | Board to Cable/Wire | Locking Ramp | Through Hole | Male Pin | 5 | 7.7 mm | 0.303 in | 0.146 in | 3.7 mm | 1 | Brass | Glass Filled, Nylon, Polyamide (PA) | 0.156 in | 3.96 mm | -25 °C | 105 ░C | General Purpose, Industrial, Lighting | UL94 V-2 | 7.5 A | Square | Natural | Glow Wire Compliant | ||||||
TE Connectivity AMP Connectors 7-1123724-2 | Header | Solder | Tin | 250 VAC | 14.4 mm | 0.567 " | Shrouded - 1 Wall | 0.362 in | 9.2 mm | Board to Cable/Wire | Locking Ramp | Through Hole | Male Pin | 7.7 mm | 0.303 in | 0.146 in | 3.7 mm | 1 | Brass | Glass Filled, Nylon, Polyamide (PA) | 0.156 in | 3.96 mm | -25 °C | 105 ░C | General Purpose, Industrial, Lighting | UL94 V-2 | 7.5 A | Square | Natural | Glow Wire Compliant | 2 | |||||||
TE Connectivity AMP Connectors 5-1123724-2 | Header | Solder | Tin | 250 VAC | 14.4 mm | 0.567 " | Shrouded - 1 Wall | 0.362 in | 9.2 mm | Board to Cable/Wire | Locking Ramp | Through Hole | Male Pin | 7.7 mm | 0.303 in | 0.146 in | 3.7 mm | 1 | Brass | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C | General Purpose, Industrial, Lighting | UL94 V-0 | 7.5 A | Square | Black | 2 | ||||||||
TE Connectivity AMP Connectors 7-1123724-3 | Header | Solder | Tin | 250 VAC | 14.4 mm | 0.567 " | Shrouded - 1 Wall | 0.362 in | 9.2 mm | Board to Cable/Wire | Locking Ramp | Through Hole | Male Pin | 7.7 mm | 0.303 in | 0.146 in | 3.7 mm | 1 | Brass | Glass Filled, Nylon, Polyamide (PA) | 0.156 in | 3.96 mm | -25 °C | 105 ░C | General Purpose, Industrial, Lighting | UL94 V-2 | 7.5 A | Square | Natural | Glow Wire Compliant | 3 | |||||||
TE Connectivity AMP Connectors 4-1123724-4 | Header | Solder | Tin | 7 | 250 VAC | 14.4 mm | 0.567 " | Shrouded - 1 Wall | 0.362 in | 9.2 mm | Board to Cable/Wire | Locking Ramp | Through Hole | Male Pin | 7.7 mm | 0.303 in | 0.146 in | 3.7 mm | 1 | Brass | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C | General Purpose, Industrial, Lighting | UL94 V-0 | 7.5 A | Square | Red | 4 | |||||||
TE Connectivity AMP Connectors 2-1123724-2 | Header | Solder | Tin | 250 VAC | 14.4 mm | 0.567 " | Shrouded - 1 Wall | 0.362 in | 9.2 mm | Board to Cable/Wire | Locking Ramp | Through Hole | Male Pin | 7.7 mm | 0.303 in | 0.146 in | 3.7 mm | 1 | Brass | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C | General Purpose, Industrial, Lighting | UL94 V-0 | 7.5 A | Square | Natural | 1 µm | 39.4 µin | 31.5 µin | 0.8 µm | All | ||||
TE Connectivity AMP Connectors 4-1123724-2 | Header | Solder | Tin | 250 VAC | 14.4 mm | 0.567 " | Shrouded - 1 Wall | 0.362 in | 9.2 mm | Board to Cable/Wire | Locking Ramp | Through Hole | Male Pin | 7.7 mm | 0.303 in | 0.146 in | 3.7 mm | 1 | Brass | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C | General Purpose, Industrial, Lighting | UL94 V-0 | 7.5 A | Square | Red | 2 |
Description
General part information
1123724 Series

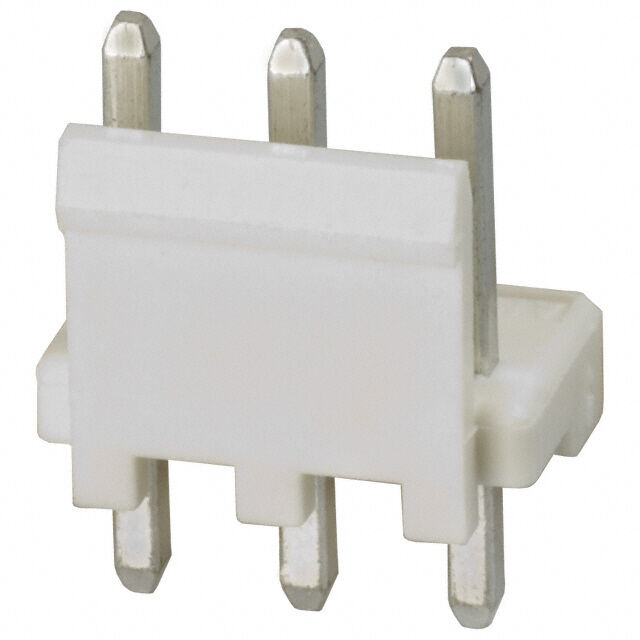

Connector Header Through Hole 3 position 0.156" (3.96mm)
