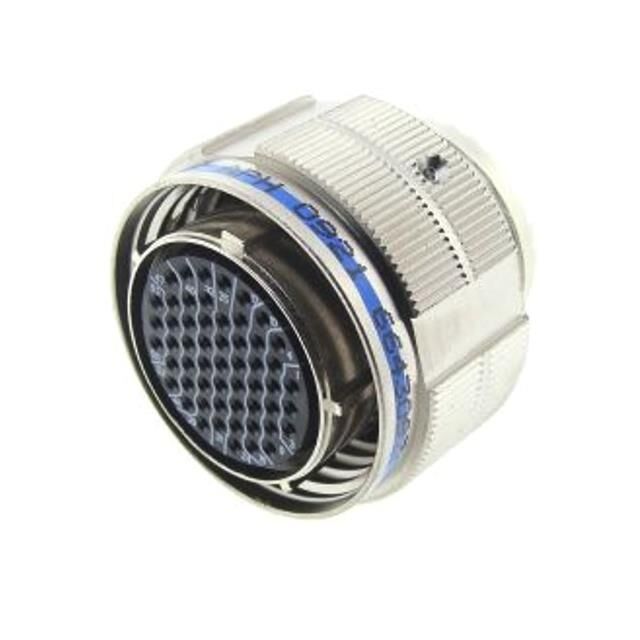

D38999/20TC98SN
ActiveCorsair
D38999 SER III RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/20TC98SN
ActiveCorsair
D38999 SER III RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D38999/20TC98SN | D38999/20TC Series |
|---|---|---|
| Applications | Aerospace, Aviation, Military | Aerospace, Aviation, Military |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle Housing |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | - | Crimp |
| Grade | Military | Military |
| Ingress Protection | Waterproof | Waterproof |
| Insert Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Flange | Flange |
| Note | - | Contacts Not Included |
| Number of Positions | 10 | 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | N | N, A |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-38999 Series III | MIL-DTL-38999 Series III |
| Shell Finish | Durmalon™ | Durmalon™ |
| Shell Material | Aluminum | Aluminum |
| Shell Size, MIL | C | C |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
| Type | - | For Female Sockets |
D38999/20TC Series
D38999 SER III RECEPTACLE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Connector Type | Material Flammability Rating | Mounting Feature | Orientation | Contact Material | Shielding | Primary Material | Grade | Contact Finish - Mating | Applications | Termination | Qualification | Number of Positions | Shell Size, MIL | Insert Material | Contact Type | Type | Note | Shell Finish | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Corsair D38999/20TC98PA | 125 °C | -65 ░C | Waterproof | Receptacle, Female Sockets | UL94 V-0 | Flange | N | Copper Alloy | Shielded | Metal | Military | Gold | Aerospace, Aviation, Military | Crimp | MIL-DTL-38999 Series III | 10 | C | Thermoplastic | |||||
Corsair D38999/20TC98SA | 125 °C | -65 ░C | Waterproof | Receptacle, Female Sockets | UL94 V-0 | Flange | N | Copper Alloy | Shielded | Metal | Military | Gold | Aerospace, Aviation, Military | Crimp | MIL-DTL-38999 Series III | 10 | C | Thermoplastic | |||||
Corsair D38999/20TC98PNL | Receptacle Housing | Flange | N | Metal | 10 | C | Crimp | For Female Sockets | Contacts Not Included | ||||||||||||||
Corsair D38999/20TC98SN | 125 °C | -65 ░C | Waterproof | Receptacle, Female Sockets | UL94 V-0 | Flange | N | Copper Alloy | Shielded | Metal | Military | Gold | Aerospace, Aviation, Military | Crimp | MIL-DTL-38999 Series III | 10 | C | Thermoplastic | Durmalon™ | Aluminum | |||
Corsair D38999/20TC98PAL | Receptacle Housing | Flange | A | Metal | 10 | C | Crimp | For Female Sockets | Contacts Not Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 2 | $ 109.34 | |
| 10 | $ 100.60 | |||
| 50 | $ 92.55 | |||
| 100 | $ 85.15 | |||
| 500 | $ 78.34 | |||
| Bulk | 1 | $ 76.89 | ||
| 10 | $ 66.64 | |||
| 25 | $ 58.80 | |||
| 50 | $ 52.61 | |||
| 100 | $ 46.14 | |||
Description
General part information
D38999/20TC Series
10 Position Circular Connector Receptacle, Female Sockets Crimp
