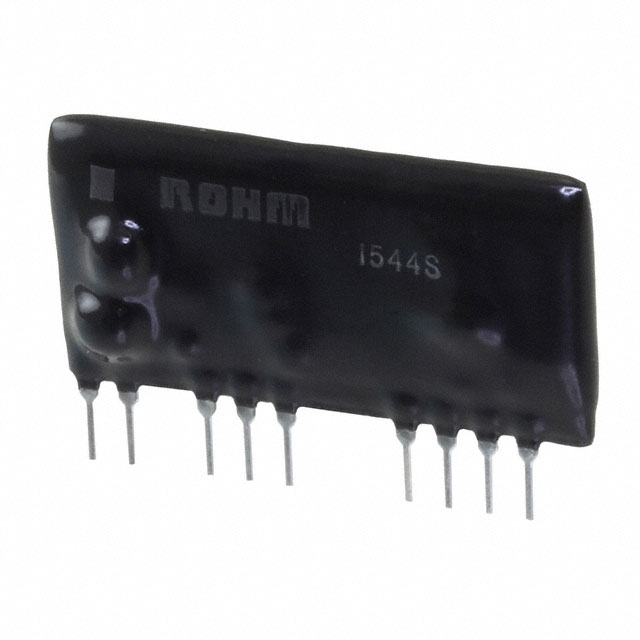

BP5720-5
ObsoleteRohm Semiconductor
AC/DC CONVERTER 5V 3W
BP5720-5
ObsoleteRohm Semiconductor
AC/DC CONVERTER 5V 3W
Description
General part information
BP5720-5
Enclosed AC DC Converters 1 Output 5V 500mA 80 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | BP5720-5 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 500 mA |
| Efficiency | 78 % |
| Features | Universal Input |
| Line Regulation | 10 mV |
| Load Regulation (mV) | 15 mV |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Package Leads | 9 Leads |
| Package Name | 12-SIP Module |
| Power (Watts) | 3 W |
| Size / Dimension Height | 0.81 in |
| Size / Dimension Length | 1.4 in |
| Size / Dimension Width | 0.39 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 80 V |
| Voltage - Output 1 | 5 V |
