FMCA1455-72
ActiveFairview Microwave
CBL ASSY SSMCPLUG-SSMCPLUG 72
FMCA1455-72
ActiveFairview Microwave
CBL ASSY SSMCPLUG-SSMCPLUG 72
Description
General part information
FMCA1455-72

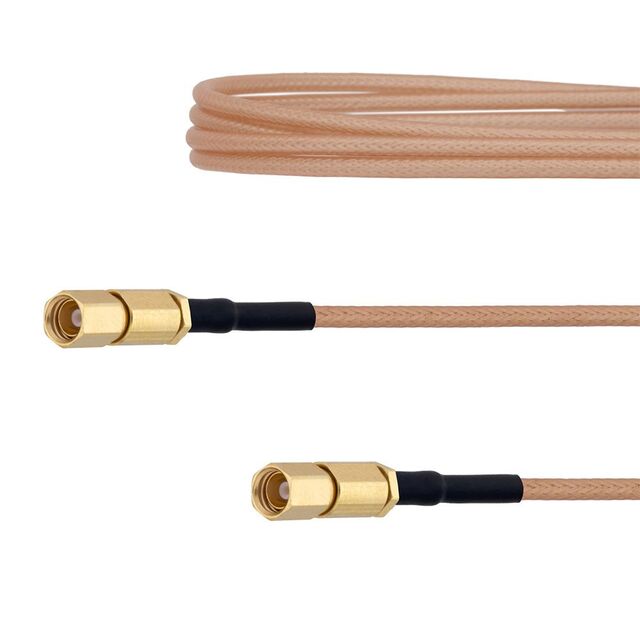

Cable Assembly Coaxial SSMC to SSMC RG-178 72.0" (1.8m) 6.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1455-72 |
|---|---|
| 1st Connector | SSMC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SSMC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 178, RG |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 12.4 GHz |
| Length | 72 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SSMC |
