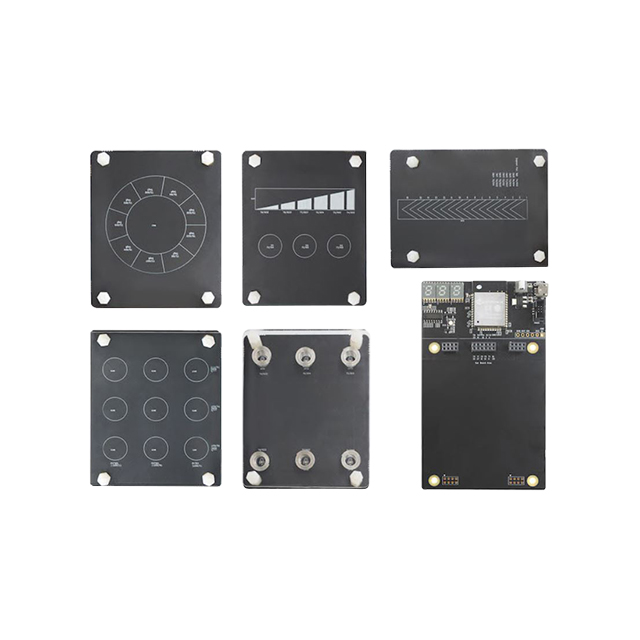

Specification	ESP32-SENSE KIT

Contents	Board
For Use With/Related Products	ESP-WROOM-32
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Bluetooth® Smart Ready 4.x Dual Mode (BLE), WLAN), WiFi, Transceiver, 802.11 b/g/n (Wi-Fi
Utilized IC / Part	ESP-WROOM-32

ESP32 Series

...

Part	Mounting Type	Current - Transmitting (Max)	Current - Transmitting (Min)	Operating Temperature (Max)	Operating Temperature (Min)	Antenna Type	Modulation	Serial Interfaces	Current - Receiving (Max)	Current - Receiving (Min)	Protocol	Sensitivity	Data Rate	Package / Case	Frequency	Power - Output	Memory Size (Flash)	Memory Type	RF Family/Standard	Utilized IC / Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Memory Size (SRAM)	Memory Size (ROM)	Frequency (Max)	Frequency (Min)	For Use With/Related Products	Supplied Contents	Type	Contents
Espressif Systems ESP32-WROOM-32E(M113EH2800PH3Q0)	Surface Mount	239 mA	165 mA	85 °C	-40 °C	PCB Trace	8DPSK DQPSK	ADC GPIO I2C I2S JTAG PWM SDIO SPI UART	118 mA	112 mA	2 and 3 802.11b 802.11g 802.11n Bluetooth v4.2 + EDR Class 1	-97 dBm	150 MHz	38-SMD Module	2.4 GHz	19.5 dBm	4 MB	Flash	Bluetooth WiFi	ESP32-D0WD-V3 ESP32-D0WDR2-V3	3.6 V	3 V
Espressif Systems ESP32-WROVER-B(M213DH2864PH3Q0)	Surface Mount			85 °C	-40 °C	PCB Trace		ADC GPIO I2C I2S PWM SDIO SPI UART			2 and 3 802.11b 802.11g 802.11n Bluetooth v4.2 + EDR Class 1	-98 dBm	150 MHz	38-SMD Module		20 dBm		ROM SRAM	Bluetooth WiFi	ESP32-D0WD	3.6 V	2.7 V	536 kB	448 kB	2.5 GHz	2.4 GHz
Espressif Systems ESP32-MINI-1U-H4	Surface Mount	379 mA	260 mA	105 °C	-40 °C	Antenna Not Included U.FL	8DPSK DQPSK	ADC GPIO I2C I2S PWM SDIO SPI UART	118 mA	112 mA	2 and 3 802.11b 802.11g 802.11n Bluetooth v4.2 +EDR Class 1	-97 dBm	150 MHz	55-SMD Module	2.4 GHz	19.5 dBm	4 MB	Flash ROM SRAM	Bluetooth WiFi	ESP32-U4WDH	3.6 V	3 V	536 kB	448 kB
Espressif Systems ESP32-DEVKITC-32U															2.4 GHz					ESP-WROOM-32							ESP-WROOM-32	Board(s)	802.11 b/g/n (Wi-Fi Bluetooth® Smart 4.x Low Energy (BLE) Transceiver WiFi WLAN)	Board
Espressif Systems ESP32-WROOM-32UE(M113EH3200UH3Q0)	Surface Mount	239 mA	165 mA	85 °C	-40 °C	Antenna Not Included U.FL	8DPSK DQPSK	ADC GPIO I2C I2S JTAG PWM SDIO SPI UART	118 mA	112 mA	2 and 3 802.11b 802.11g 802.11n Bluetooth v4.2 + EDR Class 1	-97 dBm	150 MHz	38-SMD Module	2.4 GHz	19.5 dBm	4 MB	Flash	Bluetooth WiFi	ESP32-D0WD-V3 ESP32-D0WDR2-V3	3.6 V	3 V
Espressif Systems ESP32-WROOM-32U(M113DH6400UH3Q0)	Surface Mount			85 °C	-40 °C	Antenna Not Included U.FL	CCK DSSS OFDM	ADC GPIO I2C I2S JTAG SDIO SPI UART			2 and 3 802.11b 802.11g 802.11n Bluetooth v4.2 + EDR Class 1	-98 dBm	150 MHz	38-SMD Module	2.4 GHz	18.5 dBm	4 MB	Flash	Bluetooth WiFi	ESP32-D0WD	3.6 V	3 V
Espressif Systems ESP32-WROOM-32U-N8	Surface Mount			85 °C	-40 °C	Antenna Not Included U.FL	CCK DSSS OFDM	GPIO I2C I2S PWM SDIO SPI UART			2 and 3 802.11b 802.11g 802.11n Bluetooth v4.2 +EDR Class 1	-98 dBm	150 MHz	38-SMD Module		20.5 dBm	8 MB	Flash ROM SRAM	Bluetooth WiFi	ESP32-D0WD	3.6 V	3 V	536 kB	448 kB	2.5 GHz	2.4 GHz
Espressif Systems ESP32-SOLO-1-N4	Surface Mount			85 °C	-40 °C	Integrated Trace		ADC GPIO I2C I2S PWM SDIO SPI UART			2 and 3 802.11b 802.11g 802.11n Bluetooth v4.2 +EDR Class 1	-98 dBm	150 MHz	38-SMD Module		20 dBm	4 MB	Flash ROM SRAM	Bluetooth WiFi	ESP32-S0WD	3.6 V	2.3 V	536 kB	448 kB	2.5 GHz	2.4 GHz
Espressif Systems ESP32-DEVKITC-VIE															2.4 GHz					ESP32-WROVER-IE							ESP32-WROVER-IE	Board(s)	802.11 b/g/n (Wi-Fi Bluetooth® Smart Ready 4.x Dual Mode (BLE) Transceiver WiFi WLAN)	Board
Espressif Systems ESP32-PICO-KIT															2.4 GHz					ESP32-PICO-D4							ESP32-PICO-D4	Board(s)	802.11 b/g/n (Wi-Fi Bluetooth® Smart Ready 4.x Dual Mode (BLE) Transceiver WiFi WLAN)	Board

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ESP32-SENSE KIT | Datasheet
