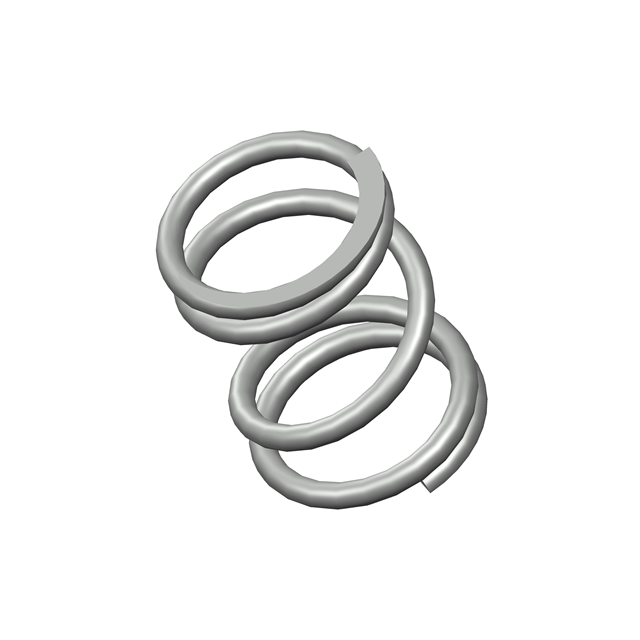

J-4CS
ActiveCentury Spring Corp
COMP O= .406,L= .56,W= .045
J-4CS
ActiveCentury Spring Corp
COMP O= .406,L= .56,W= .045
Description
General part information
J-4CS
COMP O= .406,L= .56,W= .045
Technical Specifications
Parameters and characteristics for this part
| Specification | J-4CS |
|---|---|
| Diameter - Inside | 0.316 in |
| Diameter - Outside | 0.406 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 0.56 in |
| Material | Spring Steel |
| Rate (lbs/in) | 56 lbs/in |
| Type | Compression |
| Wire Diameter | 0.045 in |
