Description
General part information

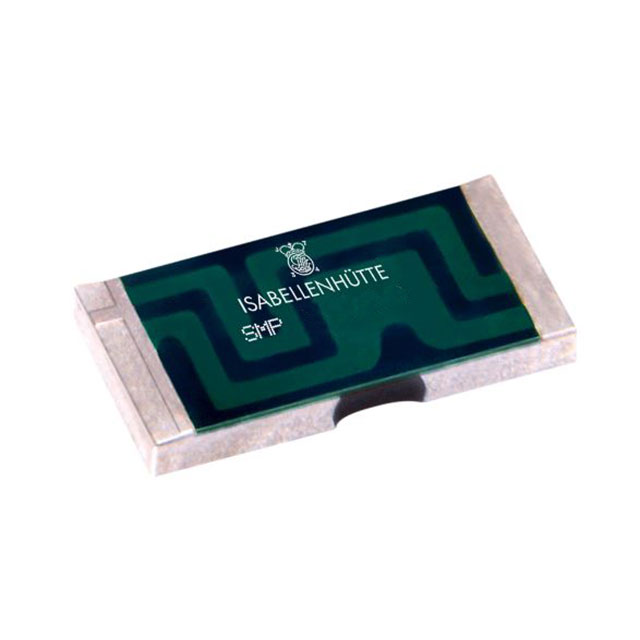

SMP-R160-1.0
160 mOhms ±1% 3W Chip Resistor 2010 (5025 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Technical Specifications
Parameters and characteristics for this part
| Specification | SMP-R160-1.0 |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Height - Seated (Max) | 0.035 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 2010 (5025 Metric) |
| Package Name | 2010 |
| Power (Watts) | 3 W |
| Resistance | 160 mOhms |
| Size / Dimension Length | 0.2 in |
| Size / Dimension Width | 0.1 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
