R7FA2E2A53CNK#UA1

Active

Renesas Electronics Corporation

48MHZ ARM CORTEX-M23 ULTRA-LOW POWER GENERAL-PURPOSE MICROCONTROLLER

Find alt

Alpha

R7FA2E2A53CNK#UA1

Active

Renesas Electronics Corporation

48MHZ ARM CORTEX-M23 ULTRA-LOW POWER GENERAL-PURPOSE MICROCONTROLLER

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

RA2 Series

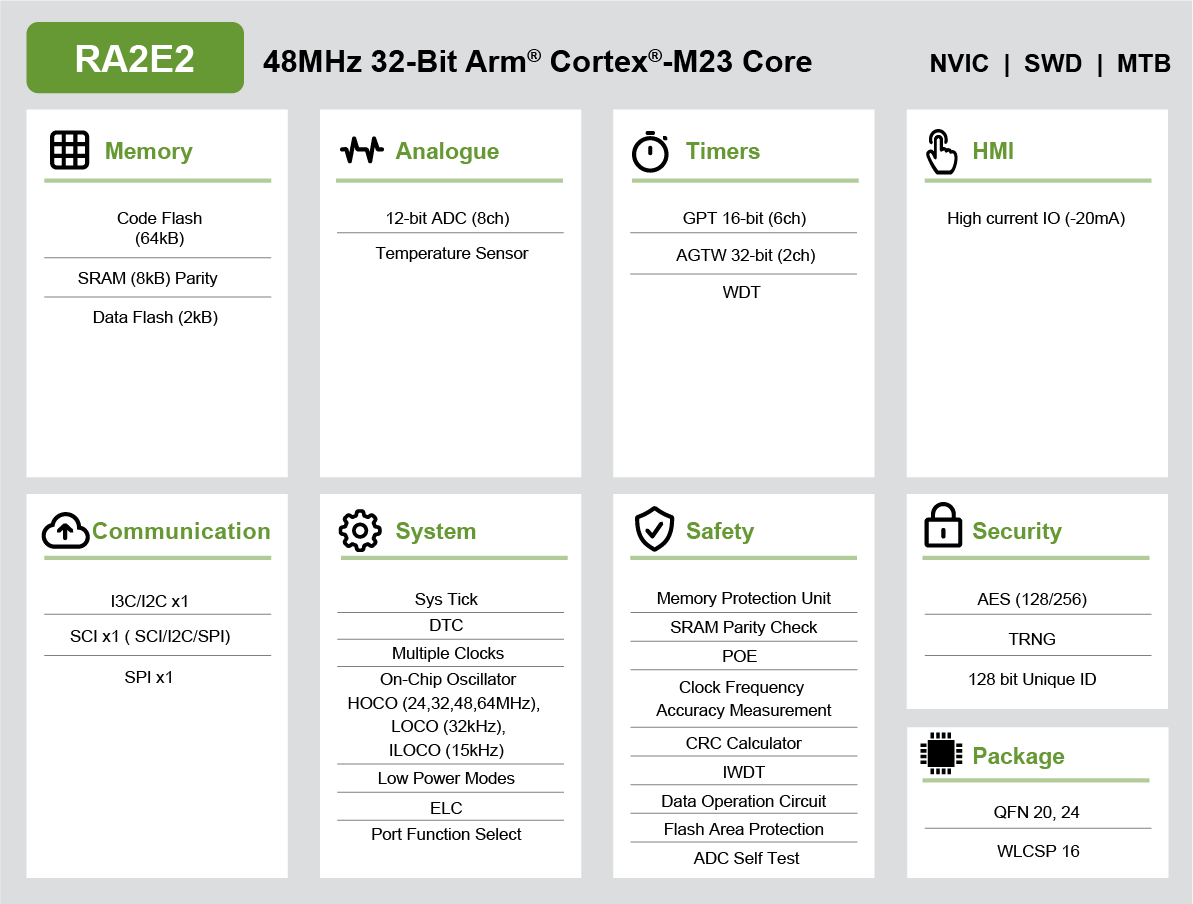

The RA2E2 Group is RA Family’s entry-line single-chip microcontroller based on the 48-MHz Arm®Cortex®-M23 core with Renesas' innovative on-chip peripheral functions. RA2E2 Group offers ultra-low power operation and high-speed serial communication with the smallest package options of 20-pin and 24-pin QFN and 16-pin wafer-level CSP package, satisfying the needs of cost-sensitive and space-constrained applications. These RA2E2 Group microcontrollers enable extremely cost-effective designs for IoT sensor nodes, portable devices, industrial control, and any battery-operated application that requires developers to cut power consumption, cost, and space.

Technical Specifications

Parameters and characteristics for this part

Specification	R7FA2E2A53CNK#UA1

A/D Channels	8 count
A/D Resolution (bits)	12 bit
Connectivity	I3C, SmartCard, SCI, USART, SPI, UART
Converter Architecture	SAR
Core Processor	ARM® Cortex®-M23
Core Size (Bit Width)	32 Bit
EEPROM Size (Depth)	2 K
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	19
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	24-WFQFN Exposed Pad
Package Length	4 mm
Package Name	24-HWQFN
Package Width	4 mm
Peripherals	POR, WDT, Temp Sensor, AES, LVD, TRNG, DMA, PWM
Program Memory Depth	32 K
Program Memory Size	32 KB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	8 K
RAM Size Width	8 bit
Speed	48 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	1.6 V

RA2 Series

...

Part	Package / Case	Package Width	Package Name	Package Length	Speed	Operating Temperature (Max)	Operating Temperature (Min)	Program Memory Type	EEPROM Size (Depth)	EEPROM Size (Width)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Connectivity	Peripherals	Core Processor	Oscillator Type	A/D Resolution (bits)	Converter Architecture	A/D Channels	Number of I/O	Core Size (Bit Width)	Program Memory Depth	Program Memory Width	Program Memory Size	Mounting Type	RAM Size Width	RAM Size Depth
Renesas Electronics Corporation R7FA2E3073CNH#HA0	32-WFQFN Exposed Pad	5 mm	32-HWQFN	5 mm	48 MHz	105 °C	-40 °C	FLASH	2 K	8 bit	5.5 V	1.6 V	I2C SCI SPI UART USART	DMA LVD POR PWM WDT	ARM® Cortex®-M23	Internal	12 bit	SAR	10 count	23	32 Bit	64 K	8 bit	64 KB	Surface Mount	8 bit	16 K
Renesas Electronics Corporation R7FA2E3073CNH#BA0	32-WFQFN Exposed Pad	5 mm	32-HWQFN	5 mm	48 MHz	105 °C	-40 °C	FLASH	2 K	8 bit	5.5 V	1.6 V	I2C SCI SPI UART USART	DMA LVD POR PWM WDT	ARM® Cortex®-M23	Internal	12 bit	SAR	10 count	23	32 Bit	64 K	8 bit	64 KB	Surface Mount	8 bit	16 K
Renesas Electronics Corporation R7FA2E3073CNH#AA0	32-WFQFN Exposed Pad	5 mm	32-HWQFN	5 mm	48 MHz	105 °C	-40 °C	FLASH	2 K	8 bit	5.5 V	1.6 V	I2C SCI SPI UART USART	DMA LVD POR PWM WDT	ARM® Cortex®-M23	Internal	12 bit	SAR	10 count	23	32 Bit	64 K	8 bit	64 KB	Surface Mount	8 bit	16 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RA2E2 Group Datasheet

R7FA2E2A53CNK#UA1 | Datasheet
