Description
General part information

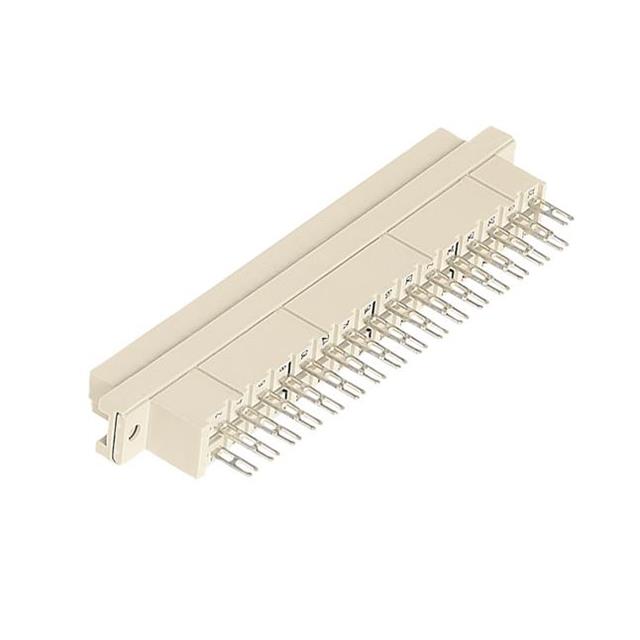

09042327823
32 Position Din Connector Receptacle, Female Sockets Gold Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | 09042327823 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating | 6 A |
| Level, Class | 3 |
| Material - Insulation | Glass Filled, PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 32 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 5.08 mm |
| Style | D |
| Termination | Solder Lug |
