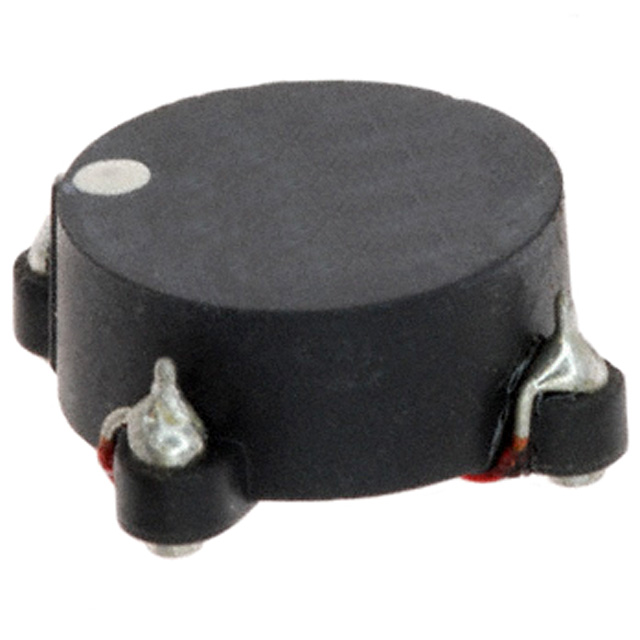

CM6560-504
500 µH @ 10 kHz 2 Line Common Mode Choke Surface Mount 3.6A DCR 23mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM6560-504 |
|---|---|
| Current Rating (Max) | 3.6 A |
| DC Resistance (DCR) (Max) | 23 mOhm |
| Height (Max) | 0.32 in |
| Inductance | 500 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.63 in |
| Size / Dimension Width | 0.63 in |
