09100022705

Obsolete

HARTING

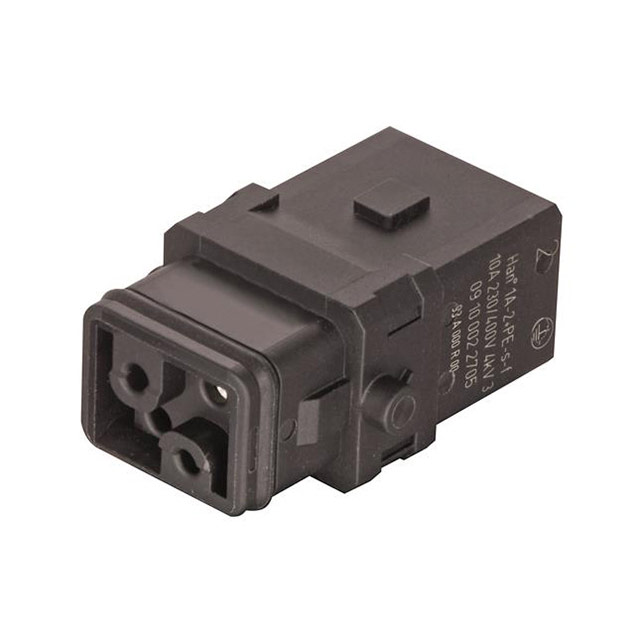

1A 2+PE FEMALE SCREW INSERT FOR

Search across all available documentation for this part.

Obsolete

HARTING

1A 2+PE FEMALE SCREW INSERT FOR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	09100022705	09100022 Series

Color	Black	Black
Contact Finish	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	10 A	10 A
Gender	Female	Male, Female
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	Ground	Ground
Number of Positions	2	2
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Size	1 A	1 A
Termination Style	Screw	Screw
Voltage Rating	400 V	400 V

1A 2+PE MALE SCREW INSERT FOR LO

Part	Gender	Number of Positions	Number of Positions	Termination Style	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Material Flammability Rating	Color	Current Rating (Amps)	Contact Material	Size	Voltage Rating
HARTING 09100022605	Male	Ground	2	Screw	Polyamide (PA), Nylon	-30 ░C	90 °C	Silver	UL94 V-0	Black	10 A	Copper Alloy	1 A	400 V
HARTING 09100022600	Male	Ground	2	Screw	Polyamide (PA), Nylon	-30 ░C	90 °C	Silver	UL94 V-0	Black	10 A	Copper Alloy	1 A	400 V
HARTING 09100022606	Male	Ground	2	Screw	Polyamide (PA), Nylon	-30 ░C	90 °C	Silver	UL94 V-0	Black	10 A	Copper Alloy	1 A	400 V
HARTING 09100022705	Female	Ground	2	Screw	Polyamide (PA), Nylon	-30 ░C	90 °C	Silver	UL94 V-0	Black	10 A	Copper Alloy	1 A	400 V
HARTING 09100022700	Female	Ground	2	Screw	Polyamide (PA), Nylon	-30 ░C	90 °C	Silver	UL94 V-0	Black	10 A	Copper Alloy	1 A	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Female Insert Black 2+Ground Position Screw
