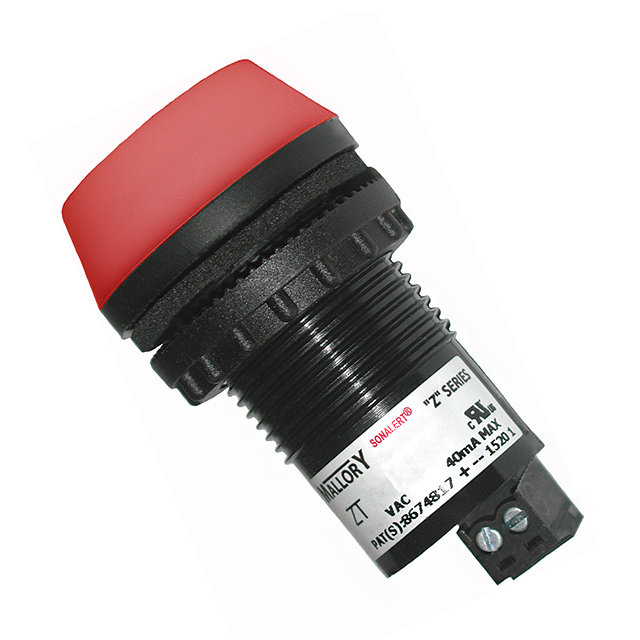

ZT120LACTR15

Active

Mallory Sonalert Products Inc.

BUZZER PIEZO 30.74MM PNL MNT

Search across all available documentation for this part.

Active

Mallory Sonalert Products Inc.

BUZZER PIEZO 30.74MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	ZT120LACTR15

Approval Agency	UL, cUL
Current - Supply	40 mA
Driver Circuitry	Internally Driven, Indicator
Duration	15 Sec
Frequency	3.7 kHz
Height - Seated (Max) [Max] [z]	2.234 in
Height - Seated (Max) [Max] [z]	56.75 mm
Ingress Protection	12, NEMA 3R, 4X
Input Type	AC
Operating Mode	Visual Indicator, Single Tone
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Port Location	Top
Size / Dimension [diameter]	1.21 "
Size / Dimension [diameter]	30.74 mm
Sound Pressure Level (SPL)	85 dB
Technology	Red, Piezo, LED
Termination	Terminal Block
Voltage Range [Max]	120 V
Voltage Range [Min]	90 V

BUZZER PIEZO 30.74MM PNL MNT

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Ingress Protection	Approval Agency	Driver Circuitry	Voltage Range [Max]	Voltage Range [Min]	Current - Supply	Port Location	Termination	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency	Duration	Operating Mode	Input Type	Sound Pressure Level (SPL)
Mallory Sonalert Products Inc. ZT120LACTR15	1.21 "	30.74 mm	12, 4X, NEMA 3R	cUL, UL	Indicator, Internally Driven	120 V	90 V	40 mA	Top	Terminal Block	LED, Piezo, Red	65 °C	-30 ░C	2.234 in	56.75 mm	3.7 kHz	15 Sec	Single Tone, Visual Indicator	AC	85 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.05

General part information

Buzzers Indicator, Internally Driven Piezo, LED, Red 40mA 3.7kHz 85dB @ 90V, 61cm Panel Mount Terminal Block

Technical documentation and resources

No documents available
