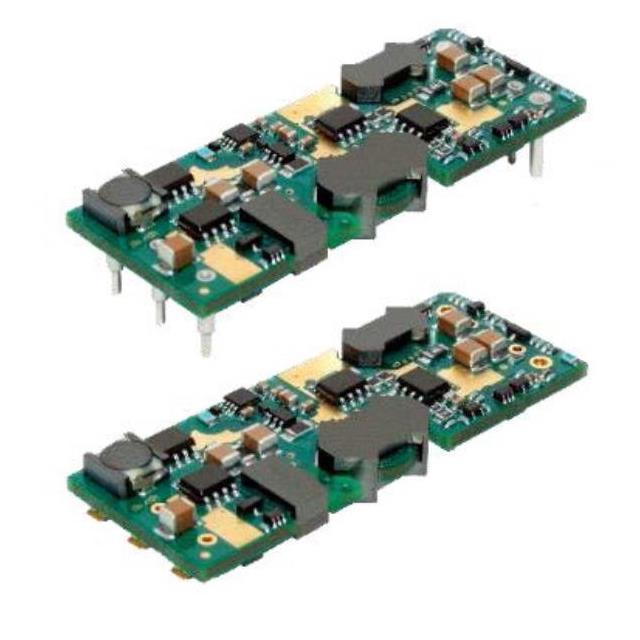

SQ24T15025-NBB0G

Active

Bel Power Solutions

DC DC CONVERTER 2.5V 38W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 2.5V 38W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 2.5V 38W

Part	Current - Output (Max) [Max]	Control Features	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Package / Case	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Voltage - Isolation	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Features	Number of Outputs
Bel Power Solutions SQ24T15025-NBB0G	15 A	Active Low, Enable	18 V	36 V	Isolated Module	1/8 Brick, 8-DIP Module	86.5 %	58.4 mm	7 mm	0.9 "	0.27 "	2.3 in	22.9 mm	2.5 V	2000 V	ITE (Commercial)	Through Hole	85 °C	-40 °C	38 W	OCP, OTP, OVP, Remote On/Off, UVLO	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 2.5V 15A 18V - 36V Input
