B65803J0000R097
ActiveEPCOS - TDK Electronics
FERRITE CORE RM 1.1UH N97 2PCS
B65803J0000R097
ActiveEPCOS - TDK Electronics
FERRITE CORE RM 1.1UH N97 2PCS
Description
General part information
B65803J0000R097

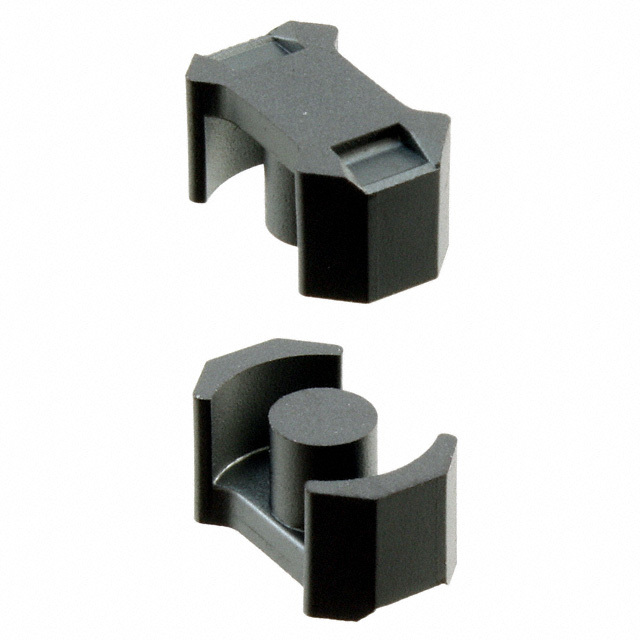

Uncoated N97 Ferrite Core RM Type 0.433" (11.00mm) Length 0.181" (4.60mm) Width Diameter 0.207" (5.25mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | B65803J0000R097 |
|---|---|
| Core Factor (ΣI/A) | 1.7 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 1.7 mm⁻¹ |
| Core Type | RM |
| Effective Area (Ae) | 13 mm² |
| Effective Length (le) | 22 mm |
| Effective Magnetic Volume (Ve) | 286 mm³ |
| Effective Permeability (µe) | 1480 |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.207 in |
| Inductance Factor (Al) | 1.1 µH |
| Initial Permeability (µi) | 2300 |
| Length | 0.433 in |
| Material | N97 |
| Minimum Core Cross Section (Amin) (mm²) | 11.3 mm² |
| Package Name | RM 4 |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 30 % |
| Width | 0.181 in |
