PE315-72
ActivePasternack
3.5MM MALE TO 3.5MM MALE TEST CA
PE315-72
ActivePasternack
3.5MM MALE TO 3.5MM MALE TEST CA
Description
General part information
PE315-72

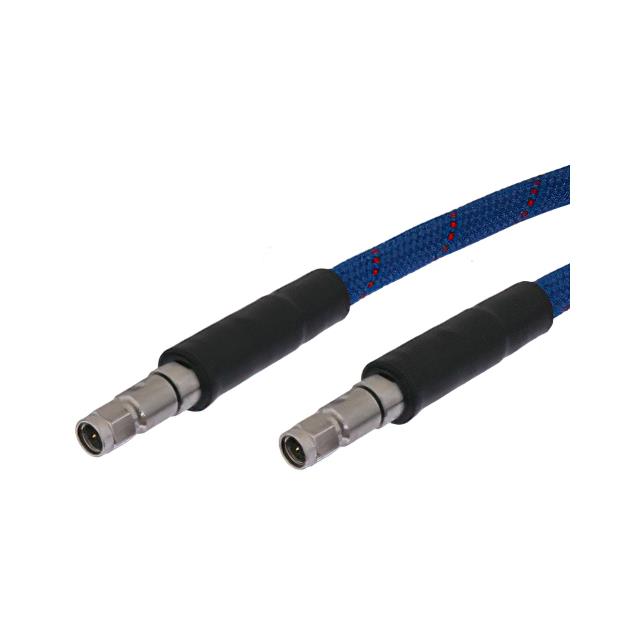

Cable Assembly Coaxial 3.5mm to 3.5mm VNA 72.0" (1.8m) 6.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE315-72 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 3.5 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 3.5 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | VNA |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 26.5 GHz |
| Length | 72 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 3.5mm to 3.5mm |
