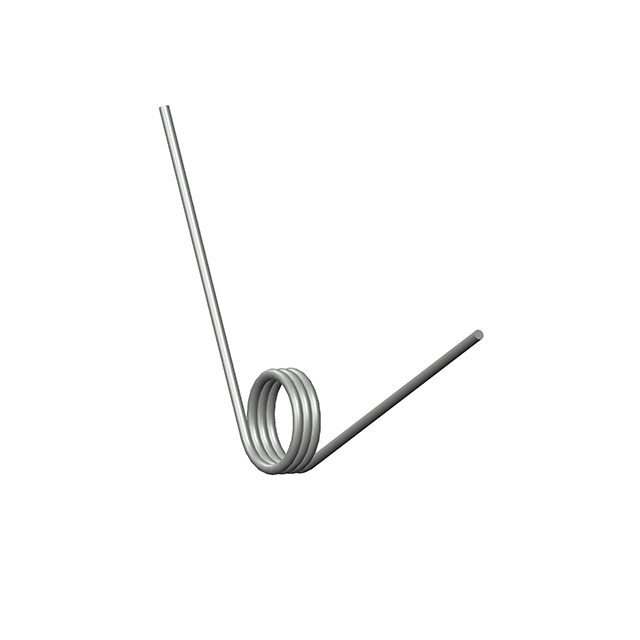

TO-5103LCS
ActiveCentury Spring Corp
TOR O=.386, W=.038
TO-5103LCS
ActiveCentury Spring Corp
TOR O=.386, W=.038
Description
General part information
TO-5103LCS
TOR O=.386, W=.038
Technical Specifications
Parameters and characteristics for this part
| Specification | TO-5103LCS |
|---|---|
| Deflection Angle | 82 ° |
| Diameter - Outside | 0.39 in |
| Finish | None |
| Leg Length | 1.3 in |
| Mandrel Diameter | 0.25 in |
| Material | Music Wire |
| Number of Coils | 3.25 |
| Wind Direction | Left |
| Wire Diameter | 0.038 in |
