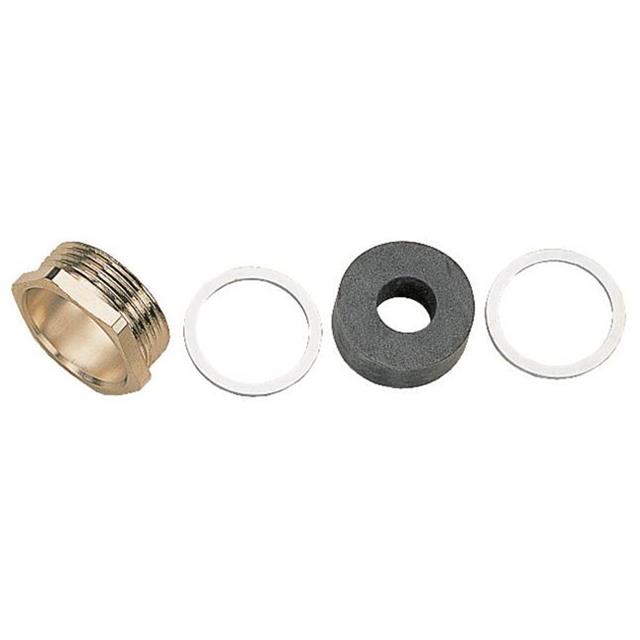

CIRCULAR CONNECTOR CABLE SEAL, PG11, IP65, HAN SERIES, STANDARD HOODS / HOUSINGS, 12 MM

Find alt

Alpha

09000005013

Active

HARTING

CIRCULAR CONNECTOR CABLE SEAL, PG11, IP65, HAN SERIES, STANDARD HOODS / HOUSINGS, 12 MM

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

09000005 Series

The Heavy-Duty Han series Connector is designed as standard for pollution degree 3. The heavy-duty Han connector features a standard protection level of IP65.

Technical Specifications

Parameters and characteristics for this part

Specification	09000005013

Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Outside Cable Diameter (Max)	0.472 in
Outside Cable Diameter (Min)	0.256 in
Thread Size	PG11
Type	Cable Gland

09000005 Series

...

Part	Accessory Type	Specifications	For Use With/Related Products	Thread Size	Outside Cable Diameter (Min)	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Max)	Operating Temperature (Min)	Outside Cable Diameter (Max)	Type	Material	Color	Thread Length
HARTING 09000005067	Reducing Adapter	PG16 Thread PG29 Thread	Han® Housings
HARTING 09000005208	Ground Terminal		Han® 16B Housings
HARTING 09000005061	Reducing Adapter	PG11 Thread to PG9 Thread	Han® Housings
HARTING 09000005280	Ground Terminal		Han® 24B Housings
HARTING 09000005339	Strain Relief
HARTING 09000005063	Reducing Adapter	PG13.5 Thread to PG11 Thread	Han® Housings
HARTING 09000005090				PG21	0.276 in	IP68	Dust Tight Waterproof	130 °C	-40 °C	0.413 in	Cable Gland	Metal	Silver
HARTING 09000005256	Ground Terminal		Han® 6B Bases
HARTING 09000005153				PG21	0.512 in	IP68	Dust Tight Waterproof			0.709 in	Cable Gland			0.551 in
HARTING 09000005074	Blanking Plug	PG29 Thread	Han® Housings
