T4131012081-000
ActiveTE Connectivity AMP Connectors

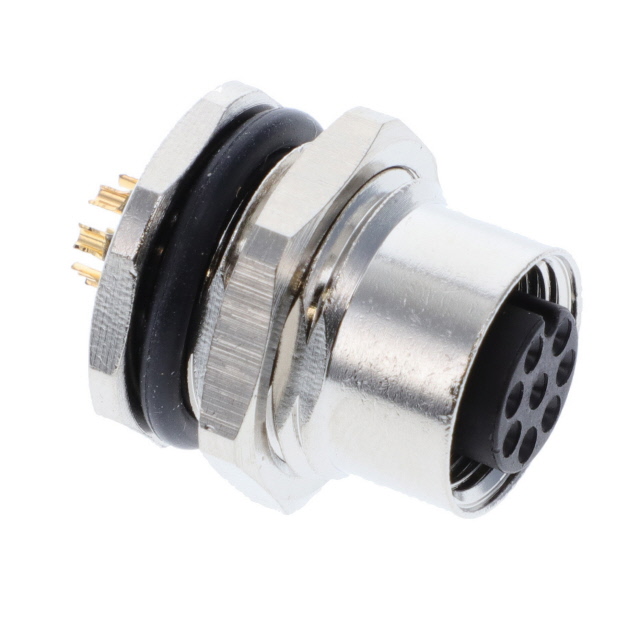

CONN RCPT FMALE 8POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4131012081-000
ActiveTE Connectivity AMP Connectors
CONN RCPT FMALE 8POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4131012081-000 | T41310 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | - | 3 µin |
| Contact Finish Thickness - Mating | - | 0.076 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 2 A | 1.5 - 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 8 | 2 - 12 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-8 | M12-12, M12-8, M12-2, M12-5 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 30 VDC | 30 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.38 | |
| 10 | $ 11.91 | |||
| 25 | $ 11.06 | |||
| 50 | $ 10.45 | |||
| 100 | $ 9.88 | |||
| 250 | $ 9.18 | |||
| 500 | $ 8.68 | |||
| 1000 | $ 8.28 | |||
T41310 Series
CONN RCPT FMALE 12P SOLDER CUP
| Part | Ingress Protection | Shell Material | Contact Finish - Mating | Applications | Shell Size - Insert | Shielding | Color | Number of Positions | Insert Material | Connector Type | Shell Finish | Primary Material | Mounting Feature | Current Rating (Amps) | Contact Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4131012121-000 | IP67 - Dust Tight, Waterproof | Copper Alloy | Gold | Industrial | M12-12 | Unshielded | Silver | 12 | Polyamide (PA66), Nylon 6/6 | Receptacle, Female Sockets | Nickel | Metal | Bulkhead - Front Side Nut | 1.5 A | Copper Alloy | 30 VDC | 85 °C | -40 °C | A | |||
TE Connectivity AMP Connectors T4131012081-000 | IP67 - Dust Tight, Waterproof | Copper Alloy | Gold | Industrial | M12-8 | Unshielded | Silver | 8 | Polyamide (PA66), Nylon 6/6 | Receptacle, Female Sockets | Nickel | Metal | Bulkhead - Front Side Nut | 2 A | Copper Alloy | 30 VDC | 85 °C | -40 °C | A | |||
TE Connectivity AMP Connectors T4131012021-000 | IP67 - Dust Tight, Waterproof | Copper Alloy | Gold | Industrial | M12-2 | Unshielded | Silver | 2 | Polyamide (PA66), Nylon 6/6 | Female Sockets, Plug | Nickel | Metal | Bulkhead - Front Side Nut | 4 A | Copper Alloy | 250 VDC | 85 °C | -40 °C | A | UL94 V-0 | 3 µin | 0.076 µm |
TE Connectivity AMP Connectors T4131012051-000 | IP67 - Dust Tight, Waterproof | Copper Alloy | Gold | Industrial | M12-5 | Unshielded | Silver | Polyamide (PA66), Nylon 6/6 | Female Sockets, Plug | Nickel | Metal | Bulkhead - Front Side Nut | 4 A | Copper Alloy | 60 VDC | 85 °C | -40 °C | A | UL94 V-0 | 3 µin | 0.076 µm |
Description
General part information
T41310 Series
8 Position Circular Connector Receptacle, Female Sockets Solder Cup
