001-0014
ActiveEzurio LLC

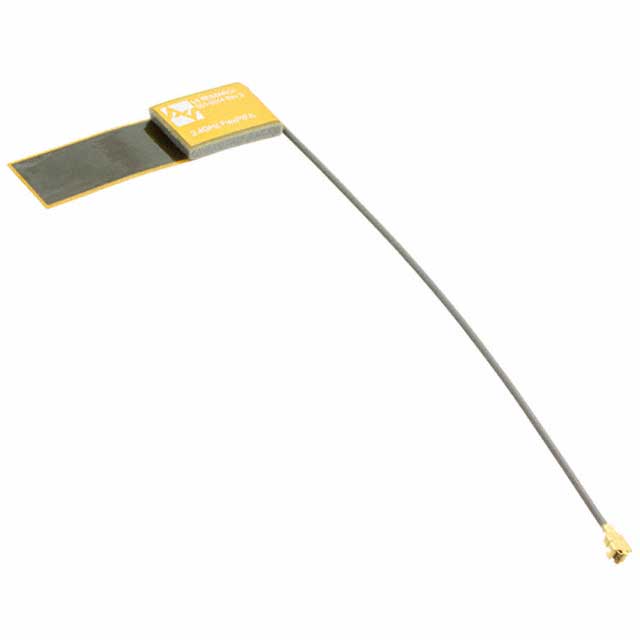

RF ANT 2.4GHZ FLEXPIFA U.FL ADH
001-0014
ActiveEzurio LLC
RF ANT 2.4GHZ FLEXPIFA U.FL ADH
Description
General part information
001-0014
RF ANTENNA FlexPIFA U.FL (UMCC), I-PEX MHF1 Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 001-0014 |
|---|---|
| Antenna Type | FlexPIFA |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.48 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 2 dBi |
| Height (Max) | 0.098 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
