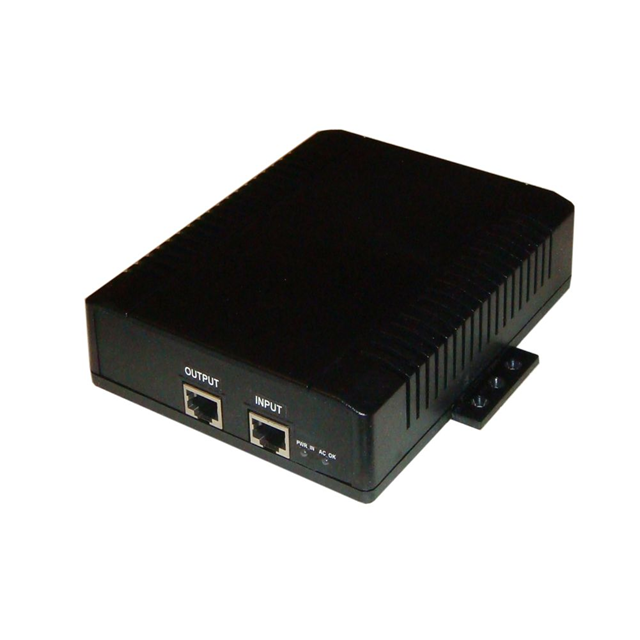

POE-SPLT-4824AC

Obsolete

Tycon Systems Inc.

POE SPLITTER.48VDC 4 PAIR POE IN

Search across all available documentation for this part.

Obsolete

Tycon Systems Inc.

POE SPLITTER.48VDC 4 PAIR POE IN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	POE-SPLT-4824AC	POE-S Series

Approval Agency	-	FCC
Compliance	-	IEEE802.3at
Current - Output	-	830 mA
Data Rate	-	10 - 1000 Mbps
Efficiency	-	85 %
Features	-	SCP, UVLO, OVP, OCP
For Use With/Related Products	Ethernet, RJ45	Ethernet, RJ45
Input Connector	-	RJ45 (Data, Power)
Mounting Type	-	Chassis Mount
Number of Ports	-	1
Operating Temperature	-	65 °C
Operating Temperature	-	-30 ░C
Output Connector	-	RJ45 (Data, Power)
Power (Watts) - Per Port	-	20 W
Size / Dimension	-	78 mm
Size / Dimension	-	83.8 mm
Size / Dimension	-	3.3 "
Size / Dimension	-	3.07 in
Size / Dimension	-	1.4 "
Size / Dimension	-	35.6 mm
Type	PoE Splitter	PoE Splitter, Splitter
Voltage - Output	-	24 V

GIGABIT POE SPLITTER.48VDC 802.3

Part	Type	For Use With/Related Products	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Output Connector	Compliance	Efficiency	Data Rate	Power (Watts) - Per Port	Features	Mounting Type	Number of Ports
Tycon Systems Inc. POE-SPLT-48G-VUB	PoE Splitter	Ethernet, RJ45
Tycon Systems Inc. POE-SPLT-4824AC	PoE Splitter	Ethernet, RJ45
Tycon Systems Inc. POE-SPLT-4812G-P	PoE Splitter	Ethernet, RJ45
Tycon Systems Inc. POE-SPLT-4824G-P	PoE Splitter, Splitter	Ethernet, RJ45	FCC	78 mm	83.8 mm	3.3 "	3.07 in	1.4 "	35.6 mm	830 mA	RJ45 (Data, Power)	65 °C	-30 ░C	24 V	RJ45 (Data, Power)	IEEE802.3at	85 %	10 Mbps, 100 Mbps, 1000 Mbps	20 W	OCP, OVP, SCP, UVLO	Chassis Mount	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PoE Splitter Ethernet, RJ45
