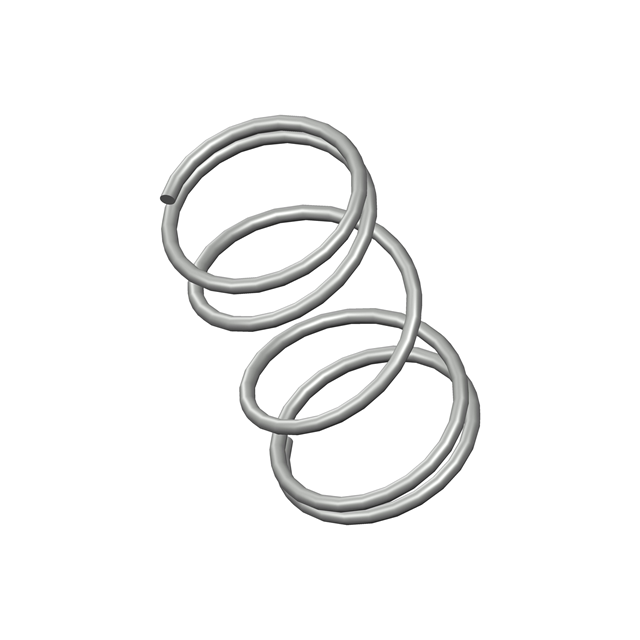

12421CS
ActiveCentury Spring Corp
COMP O= .375,L= .69,W= .027
12421CS
ActiveCentury Spring Corp
COMP O= .375,L= .69,W= .027
Description
General part information
12421CS
COMP O= .375,L= .69,W= .027
Technical Specifications
Parameters and characteristics for this part
| Specification | 12421CS |
|---|---|
| Diameter - Inside | 0.321 in |
| Diameter - Outside | 0.375 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.69 in |
| Material | Music Wire |
| Rate (lbs/in) | 6 lbs/in |
| Type | Compression |
| Wire Diameter | 0.027 in |
