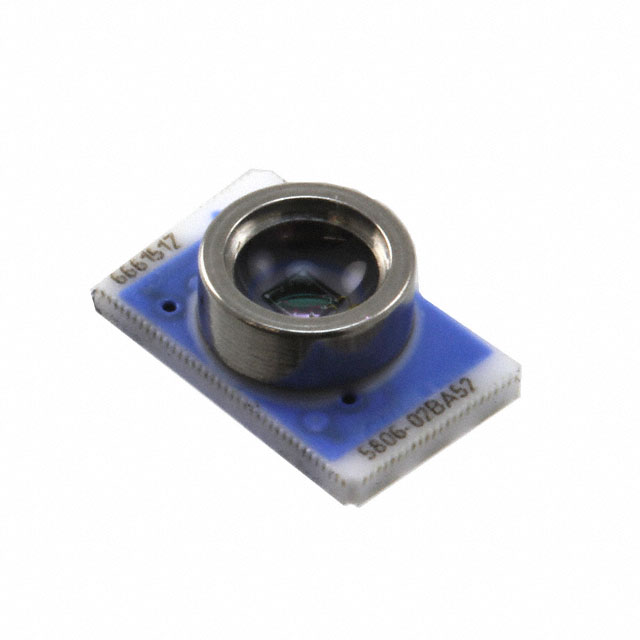

MS580602BA52-51
ObsoleteTE Connectivity Measurement Specialties
SENSOR 17.4PSIA 24BIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS580602BA52-51
ObsoleteTE Connectivity Measurement Specialties
SENSOR 17.4PSIA 24BIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS580602BA52-51 |
|---|---|
| Accuracy [x] | 0.058 PSI |
| Accuracy [x] | 0.4 kPa |
| Maximum Pressure | 500 kPa |
| Maximum Pressure | 72.52 PSI |
| Operating Pressure [Max] | 17.4 PSI |
| Operating Pressure [Max] | 120 kPa |
| Operating Pressure [Min] | 30 kPa |
| Operating Pressure [Min] | 4.35 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 24 b |
| Output Type | I2C |
| Port Style | No Port |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MS580602BA52-51
Pressure Sensor 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa) Absolute 24 b
