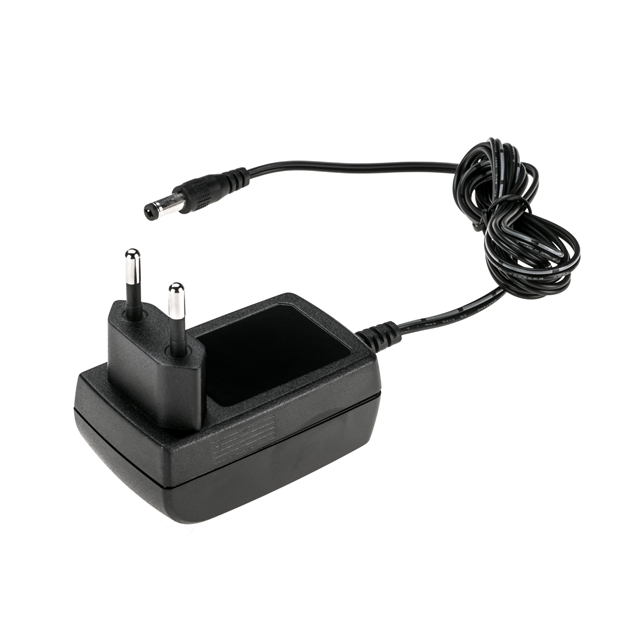

15DYS818-150120W-2

Active

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 15V 18W

Search across all available documentation for this part.

Active

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 15V 18W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	15DYS818-150120W-2	15DYS818 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, TUV	CE, cULus, CE, TUV
Current - Output (Max) [Max]	1.2 A	1.2 - 2 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Wall Mount (Class I), Wall Mount (Class II)
Input Connector	CEE 7/16	BS 1363, NEMA 1-15P, CEE 7/16
Input Type	Fixed Blade	Fixed Blade
Operating Temperature [Max]	45 °C	45 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [z]	12 mm	12 mm
Power (Watts)	18 W	18 W
Region Utilized	Europe	United Kingdom, North America, Europe
Size / Dimension [x]	2.66 in	2.6 - 2.66 in
Size / Dimension [x]	67.5 mm	66 - 67.5 mm
Size / Dimension [y]	45.5 mm	45.5 - 49.3 mm
Size / Dimension [y]	1.79 "	1.79 - 1.94 "
Size / Dimension [z]	28 mm	28 - 34.8 mm
Size / Dimension [z]	1.1 in	1.1 - 1.37 in
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	15 VDC	9 - 15 V

ADAPTER, AC-DC, 1 O/P, 9V, 2A ROHS COMPLIANT: YES

Part	Form	Efficiency	Standard Number	Power (Watts)	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Current - Output (Max) [Max]	Region Utilized	Input Connector	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Approval Agency	Output Connector	Output Connector [diameter]	Output Connector [z]
IDEAL POWER 15DYS818-090200W-3	Wall Mount (Class I)	Level VI	62368-1	18 W	9 V	90 VAC	264 VAC	Fixed Blade	2 A	United Kingdom	BS 1363	45 °C	1.37 in	34.8 mm	66 mm	2.6 in	49.3 mm	1.94 "	ITE (Commercial)	CE	Barrel Plug	2.1 mm, 5.5 mm	12 mm
IDEAL POWER 15DYS818-090200W-1	Wall Mount (Class II)	Level VI	62368-1	18 W	9 V	90 VAC	264 VAC	Fixed Blade	2 A	North America	NEMA 1-15P	45 °C	1.1 in	28 mm	67.5 mm	2.66 in	45.5 mm	1.79 "	ITE (Commercial)	cULus	Barrel Plug	2.1 mm, 5.5 mm	12 mm
IDEAL POWER 15DYS818-150120W-2	Wall Mount (Class II)	Level VI	62368-1	18 W	15 VDC	90 VAC	264 VAC	Fixed Blade	1.2 A	Europe	CEE 7/16	45 °C	1.1 in	28 mm	67.5 mm	2.66 in	45.5 mm	1.79 "	ITE (Commercial)	CE, TUV	Barrel Plug	2.1 mm, 5.5 mm	12 mm
IDEAL POWER 15DYS818-150120W-3	Wall Mount (Class I)	Level VI	62368-1	18 W	15 VDC	90 VAC	264 VAC	Fixed Blade	1.2 A	United Kingdom	BS 1363	45 °C	1.37 in	34.8 mm	66 mm	2.6 in	49.3 mm	1.94 "	ITE (Commercial)	CE	Barrel Plug	2.1 mm, 5.5 mm	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
