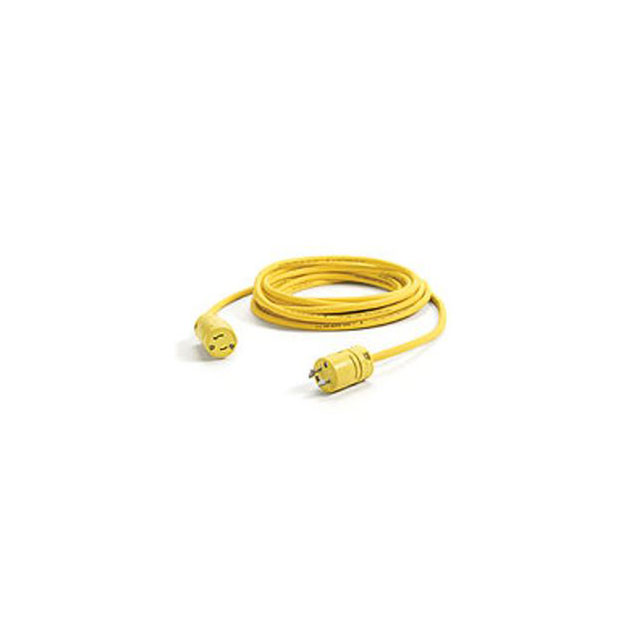

Specification	1301430099

1st Connector	NEMA 5-15P
2nd Connector	NEMA 5-15R
Approval Agency Marking	CSA, UL
Approved Countries	United States, Canada
Color	Yellow
Cord Type	SOOW
Current Rating	15 A
Features	Strain Relief, Outdoor Use
Length	50 ft
Number of Conductors	3
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-40 °C
Style	Female Sockets (Slots), Male Pins (Blades)
Voltage Rating	125 V
Wire Gauge	12 AWG

130143 Series

...

Part	Current Rating	Color	Voltage Rating	Number of Conductors	Style	2nd Connector	1st Connector	Cord Type	Length	Wire Gauge	Shielding	Features	Approved Countries	Operating Temperature (Max)	Operating Temperature (Min)	Approval Agency Marking
Molex 1301430252	30 A	Yellow	125 V	3	Female Sockets (Slots) Male Pins (Blades)	NEMA L5-30R	NEMA L5-30P	SOOW	25 ft	12 AWG	Unshielded
Molex 1301430346
Molex 1301430271	30 A	Yellow	250 V	3	Female Sockets (Slots) Male Pins (Blades)	NEMA L14-30R	NEMA L14-30P	SOOW	50 ft	10 AWG		Covers Industrial Environments IP65/66/67 Locking Outdoor Use Strain Relief Watertight	Canada United States	75 °C	-40 °C	CSA NSF UL
Molex 1301430170
Molex 1301430275
Molex 1301430384
Molex 1301430149	15 A	Yellow	125 V	3	Female Sockets (Slots) Male Pins (Blades)	NEMA 5-15R	NEMA 5-15P	SJOW	100 ft	12 AWG	Unshielded
Molex 1301430282
Molex 1301430278	30 A	Yellow	480 VAC	4	Female Sockets (Slots) Male Pins (Blades)	NEMA L16-30R	NEMA L16-30P	SOOW	25 ft	10 AWG	Unshielded
Molex 1301430230
