Description
General part information

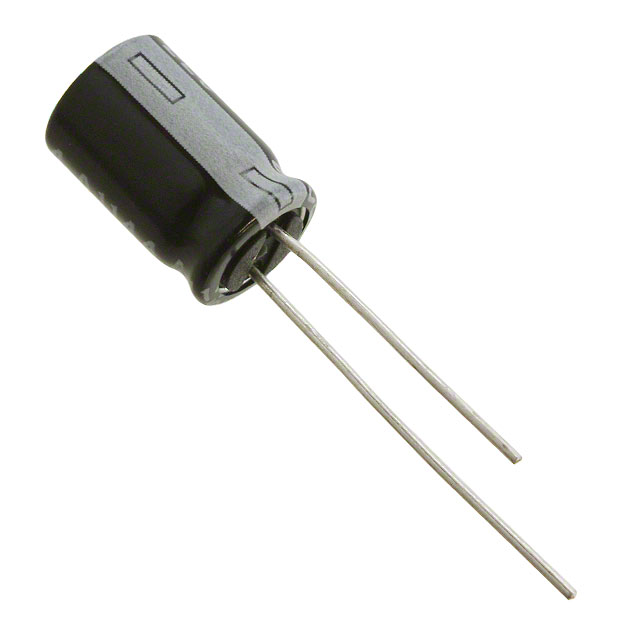

16RX30220MT78X16
220 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 16RX30220MT78X16 |
|---|---|
| Applications | Automotive |
| Capacitance | 220 µF |
| Height - Seated (Max) | 0.689 in |
| Lead Spacing | 0.138 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
