PFC3525ER-181K09B-00

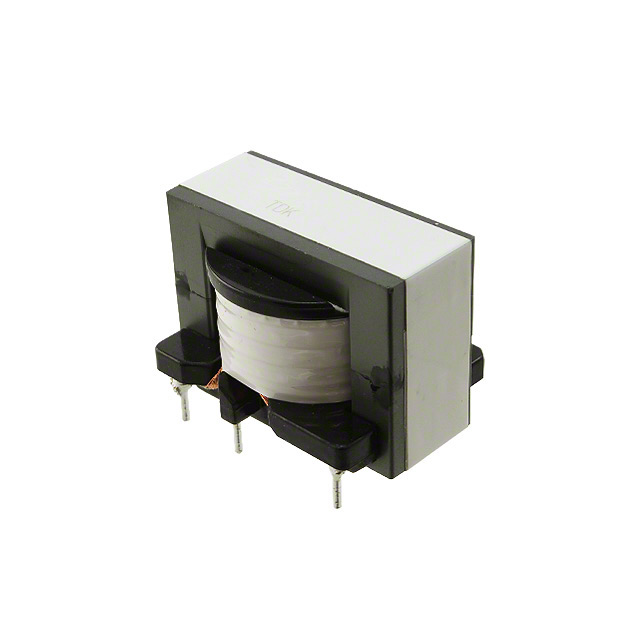

180 µH Unshielded Drum Core, Wirewound Inductor 9.5 A Radial, Horizontal, 6 Leads Choke Coils for PFC (Pin Terminal Type)
Technical Specifications
Parameters and characteristics for this part
| Specification | PFC3525ER-181K09B-00 |
|---|---|
| Current Rating | 9.5 A |
| Features | Choke Coils for PFC (Pin Terminal Type) |
| Height - Seated (Max) | 1.063 in |
| Inductance | 180 µH |
| Inductance Frequency - Test | 50 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -30 °C |
| Package Leads | 6 Leads |
| Package Name | Horizontal, Radial |
| Shielding | Unshielded |
| Size / Dimension Length | 1.457 in |
| Size / Dimension Width | 1.083 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
