252010CDMCDDS-R47MC
ObsoleteSumida America Components Inc.
FIXED IND 470NH 6A 21 MOHM SMD
252010CDMCDDS-R47MC
ObsoleteSumida America Components Inc.
FIXED IND 470NH 6A 21 MOHM SMD
Description
General part information
252010CDMCDDS-R47MC

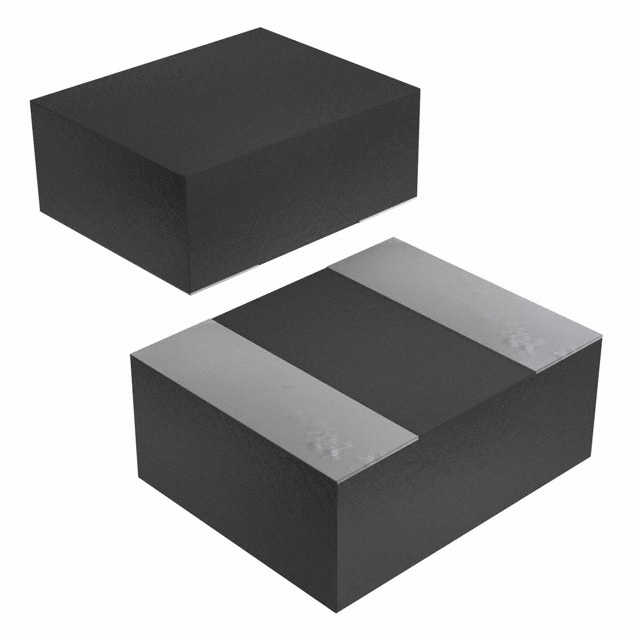

470 nH Shielded Molded Inductor 6 A 21mOhm Max 1008 (2520 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 252010CDMCDDS-R47MC |
|---|---|
| Current - Saturation (Isat) | 5.2 A |
| Current Rating | 6 A |
| DC Resistance (DCR) (Max) | 21 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 470 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1008 (2520 Metric) |
| Package Name | 1008 |
| Shielding | Shielded |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Tolerance | 20 % |
| Type | Molded |
