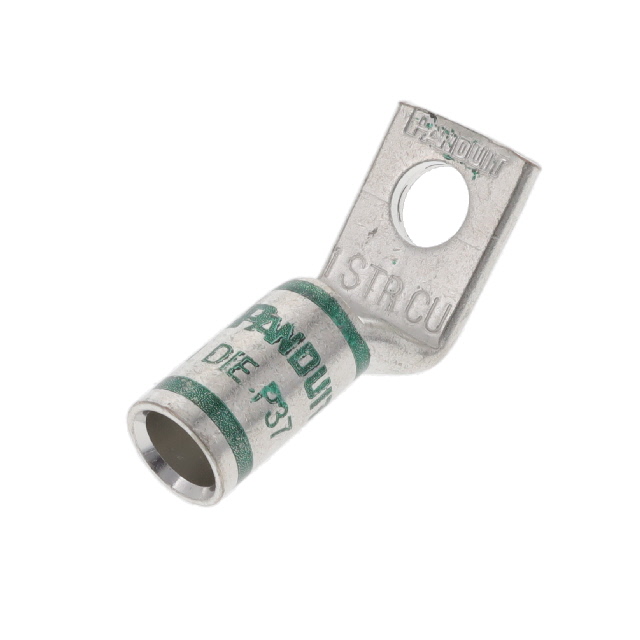

LCA1-56H-E
ActivePanduit Corp
COPPER COMPRESSION LUG, 1 HOLE, #1 AWG,
LCA1-56H-E
ActivePanduit Corp
COPPER COMPRESSION LUG, 1 HOLE, #1 AWG,
Description
General part information
LCA1 Series
Terminal Connector Rectangular Rectangular Tongue 1 AWG 5/16 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | LCA1-56H-E |
|---|---|
| Color | Green |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.36 in |
| Diameter - Barrel OD | 0.47 in |
| Diameter - Ring ID | 0.34 in |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Stud/Tab Size | 0.3125 in |
| Stud/Tab Size | 16 Stud, 5 Stud |
| Stud/Tab Size (Type) | Stud |
| Tab Thickness | 0.11 in |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 0.7 in |
| Wire Gauge | 1 AWG |
