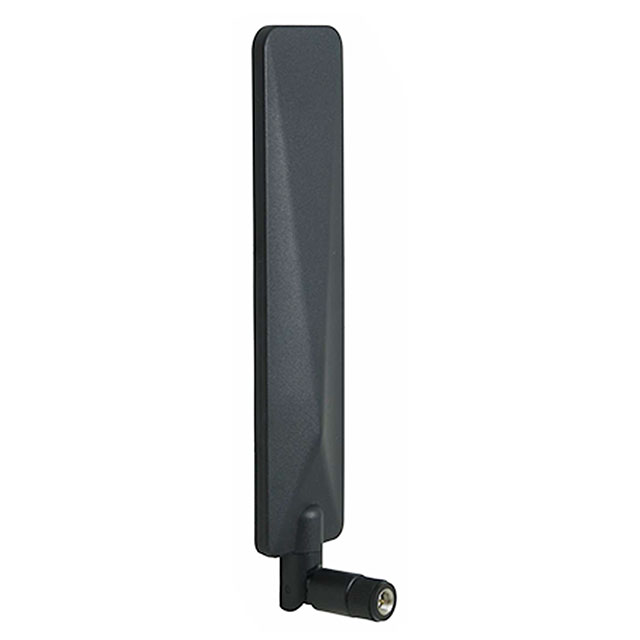

APAMPSLJ-140
ObsoleteAbracon LLC
RF ANT 829MHZ/2.2GHZ WHIP STR
APAMPSLJ-140
ObsoleteAbracon LLC
RF ANT 829MHZ/2.2GHZ WHIP STR
Description
General part information
APAMPSLJ-140
RF ANTENNA GPS, LTE Whip, Straight SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | APAMPSLJ-140 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | LTE, GPS |
| Frequency (Band) | 2.2 GHz |
| Frequency (Center) | 829 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz, 1 GHz |
| Frequency Group Minimum (UHF) | 2 GHz, 300 MHz |
| Frequency Range (Max) | 2.69 GHz |
| Frequency Range (Min) | 699 MHz |
| Gain | 3 dBi |
| Height (Max) | 6.732 in |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| RF Family/Standard | Navigation, Cellular |
| Termination Type | SMA Male |
| VSWR | 5 |
