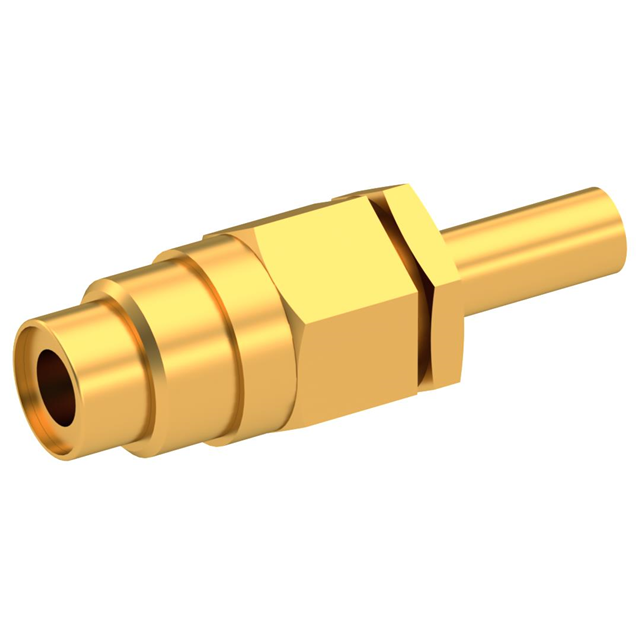

1703-1551-003

Active

Radiall USA, Inc.

75OHM M STR BHD CL 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

75OHM M STR BHD CL 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	1703-1551-003

Body Finish	Gold
Body Material	Brass
Cable Group	RG-316
Center Contact Plating	Gold
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Clamp

75OHM M STR BHD CL 2.6/50S

Part	Housing Color	Dielectric Material	Includes	Impedance	Connector Type	Fastening Type	Contact Termination	Body Finish	Body Material	Cable Group	Number of Ports	Mounting Feature	Shield Termination	Center Contact Plating
Radiall USA, Inc. 1703-1551-003	Gold	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Lockwasher, 1 Nut	75 Ohms	Jack, Male Pin	Snap-On	Solder	Gold	Brass	RG-316	1	Bulkhead - Front Side Nut	Clamp	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Jack, Male Pin 75 Ohms Panel Mount Solder
