150212-6002-RB

Active

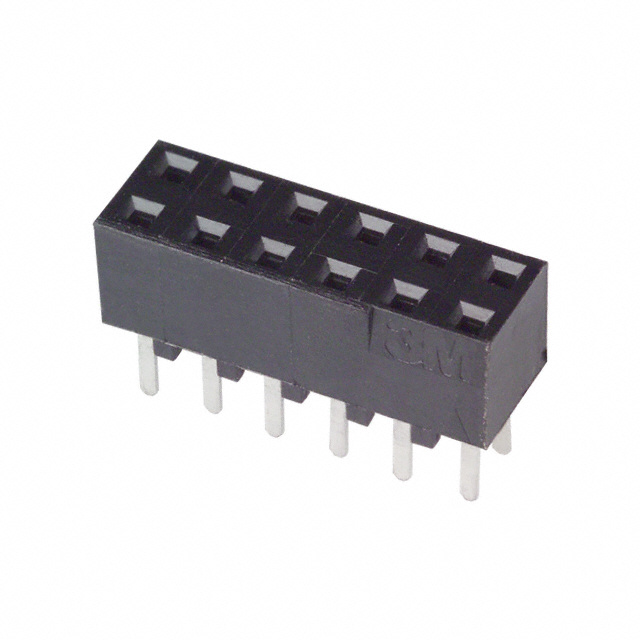

PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 2 ROWS, 12 CONTACTS, THROUGH HOLE MOUNT, 1502 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

150212-6002-RB

Active

PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 2 ROWS, 12 CONTACTS, THROUGH HOLE MOUNT, 1502 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.30
		10	$ 2.99
		322	$ 2.31
		644	$ 2.24
		966	$ 1.91
		5152	$ 1.71
Newark	Each	100	$ 3.01
		500	$ 2.51
		1000	$ 2.15
		5000	$ 1.90
		10000	$ 1.86

Description

General part information

150212 Series

12 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Specification	150212-6002-RB	150212 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Pick and Place, Board Guide
Insulation Color	Black	Black
Insulation Height	0.177 in	0.177 - 0.183 in
Insulation Height	4.5 mm	4.5 - 4.65 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Positions	12	12
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

Part	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Mounting Type	Voltage Rating	Fastening Type	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Material	Insulation Material	Termination	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Style	Contact Finish - Mating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Insulation Color	Features
3M 150212-6002-TB	2.54 mm	0.1 in	0.177 in	4.5 mm	Through Hole	500 V	Push-Pull	Tin-Lead	UL94 V-0	30 Áin	0.76 Ám	Female Socket	0.079 in	2 mm	200 µin	5.08 µm	12	Copper Alloy	Thermoplastic	Solder	Square	0.079 in	2 mm	All	Board to Board, Cable	Gold	Receptacle	105 ░C	-55 °C	2	Black
3M 150212-2020-RB-WB			0.183 in	4.65 mm	Surface Mount	500 V	Push-Pull	Tin	UL94 V-0	30 Áin	0.76 Ám	Female Socket	0.079 in	2 mm	200 µin	5.08 µm	12	Copper Alloy	Thermoplastic	Solder	Square	0.079 in	2 mm	All	Board to Board, Cable	Gold	Receptacle	105 ░C	-55 °C	2	Black	Board Guide, Pick and Place
3M 150212-2000-RB-WB			0.183 in	4.65 mm	Surface Mount	500 V	Push-Pull	Tin	UL94 V-0	30 Áin	0.76 Ám	Female Socket	0.079 in	2 mm	200 µin	5.08 µm	12	Copper Alloy	Thermoplastic	Solder	Square	0.079 in	2 mm	All	Board to Board, Cable	Gold	Receptacle	105 ░C	-55 °C	2	Black	Pick and Place
3M 150212-6002-RB	2.54 mm	0.1 in	0.177 in	4.5 mm	Through Hole	500 V	Push-Pull	Tin	UL94 V-0	30 Áin	0.76 Ám	Female Socket	0.079 in	2 mm	200 µin	5.08 µm	12	Copper Alloy	Thermoplastic	Solder	Square	0.079 in	2 mm	All	Board to Board, Cable	Gold	Receptacle	105 ░C	-55 °C	2	Black
3M 150212-2020-RB			0.183 in	4.65 mm	Surface Mount	500 V	Push-Pull	Tin	UL94 V-0	30 Áin	0.76 Ám	Female Socket	0.079 in	2 mm	200 µin	5.08 µm	12	Copper Alloy	Thermoplastic	Solder	Square	0.079 in	2 mm	All	Board to Board, Cable	Gold	Receptacle	105 ░C	-55 °C	2	Black	Board Guide
