IHLP2020CZER100M51
ActiveVishay Dale
IHLP-2020CZ-51 10 20% ER E3
IHLP2020CZER100M51
ActiveVishay Dale
IHLP-2020CZ-51 10 20% ER E3
Description
General part information
IHLP2020CZER100M51

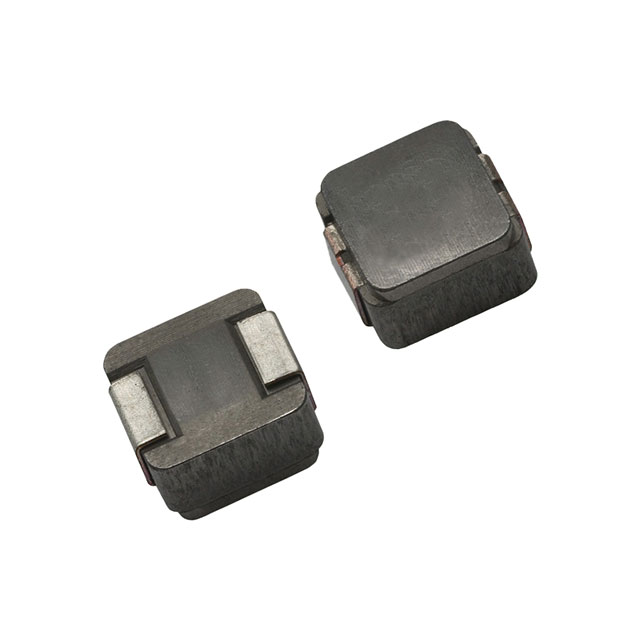

10 µH Shielded Inductor 2.8 A 138mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | IHLP2020CZER100M51 |
|---|---|
| Current - Saturation (Isat) | 1.6 A |
| Current Rating | 2.8 A |
| DC Resistance (DCR) (Max) | 138 mOhm |
| Frequency - Self Resonant | 15.9 MHz |
| Height - Seated (Max) | 0.118 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.216 in |
| Size / Dimension Width | 0.204 in |
| Tolerance | 20 % |
