Description
General part information
0D97098302

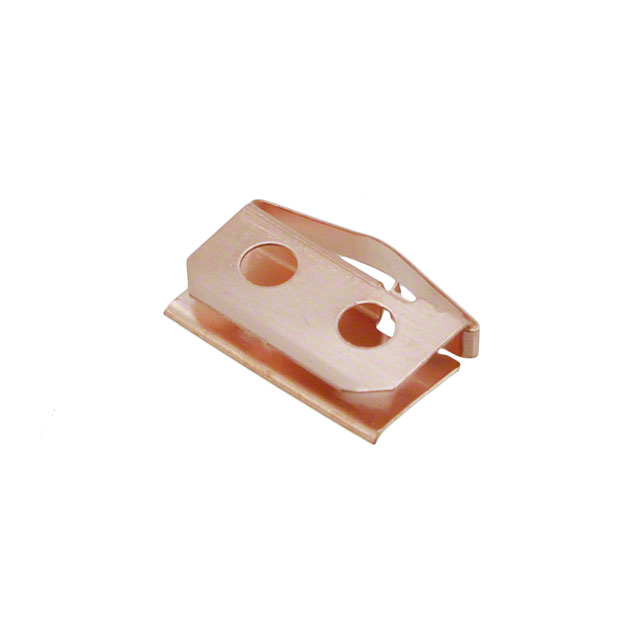

RFI FINGERSTOCK BECU NICKEL CLIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 0D97098302 |
|---|---|
| Attachment Method | Clip |
| Height | 0.062 in |
| Length | 0.375 in |
| Material | Beryllium Copper |
| Plating | Tin, Nickel |
| Plating - Thickness | 299.99 µin |
| Plating - Thickness | 299.99µin (7.62µm) |
| Shelf Life | 12 Months |
| Storage/Refrigeration Temperature (Maximum) | 77 °F |
| Storage/Refrigeration Temperature (Minimum) | 50 °F |
| Type | Fingerstock |
| Width | 0.08 in |
