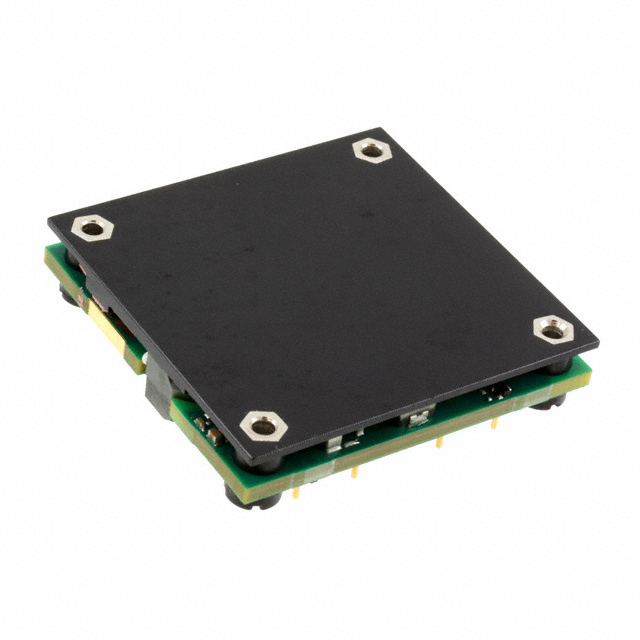

PAH-28/12.5-D48PB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 28V 350W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAH-28/12.5-D48PB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 28V 350W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PAH-28/12.5-D48PB-C | PAH-28 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active Low, Enable, Active High |
| Current - Output (Max) [Max] | 12.5 A | 12.5 - 16 A |
| Efficiency | 93 % | 92.5 - 93.5 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 9-DIP Module, 1/2 Brick | 9-DIP Module, 1/2 Brick |
| Power (Watts) | 350 W | 350 - 450 W |
| Size / Dimension [x] | 2.4 in | 2.4 in |
| Size / Dimension [x] | 61 mm | 61 mm |
| Size / Dimension [y] | 58.4 mm | 58.4 mm |
| Size / Dimension [y] | 2.3 " | 2.3 " |
| Size / Dimension [z] | 12.7 mm | 12.7 mm |
| Size / Dimension [z] | 0.5 in | 0.5 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 36 V | 18 - 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 28 V | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
PAH-28 Series
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 448W 36-75VIN 28VOUT DC/DC
| Part | Type | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Voltage - Input (Min) [Min] | Power (Watts) | Current - Output (Max) [Max] | Efficiency | Voltage - Isolation | Voltage - Output 1 | Voltage - Input (Max) [Max] | Mounting Type | Package / Case | Applications | Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. PAH-28/16-D48PB1-C | ||||||||||||||||||||||
Murata Power Solutions Inc. PAH-28/16-D48N-C | Isolated Module | 1 | 85 °C | -40 °C | Active Low, Enable | 36 V | 450 W | 16 A | 93.5 % | 2250 VDC | 28 V | 75 V | Through Hole | 9-DIP Module, 1/2 Brick | ITE (Commercial) | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 12.7 mm | 2.4 in | 61 mm | 0.5 in | 58.4 mm | 2.3 " |
Murata Power Solutions Inc. PAH-28/16-D48NB-C | ||||||||||||||||||||||
Murata Power Solutions Inc. PAH-28/16-D48NB-C | Isolated Module | 1 | 85 °C | -40 °C | Active Low, Enable | 36 V | 450 W | 16 A | 93.5 % | 2250 VDC | 28 V | 75 V | Through Hole | 9-DIP Module, 1/2 Brick | ITE (Commercial) | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 12.7 mm | 2.4 in | 61 mm | 0.5 in | 58.4 mm | 2.3 " |
Murata Power Solutions Inc. PAH-28/12.5-D48NB-C | Isolated Module | 1 | 85 °C | -40 °C | Active Low, Enable | 36 V | 350 W | 12.5 A | 93 % | 2250 VDC | 28 V | 75 V | Through Hole | 9-DIP Module, 1/2 Brick | ITE (Commercial) | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 12.7 mm | 2.4 in | 61 mm | 0.5 in | 58.4 mm | 2.3 " |
Murata Power Solutions Inc. PAH-28/12.5-D24NB-C | ||||||||||||||||||||||
Murata Power Solutions Inc. PAH-28/12.5-D48NB1-C | Isolated Module | 1 | 85 °C | -40 °C | Active Low, Enable | 36 V | 350 W | 12.5 A | 93 % | 2250 VDC | 28 V | 75 V | Through Hole | 9-DIP Module, 1/2 Brick | ITE (Commercial) | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 12.7 mm | 2.4 in | 61 mm | 0.5 in | 58.4 mm | 2.3 " |
Murata Power Solutions Inc. PAH-28/12.5-D24NB-C | Isolated Module | 1 | 85 °C | -40 °C | Active Low, Enable | 18 V | 350 W | 12.5 A | 92.5 % | 2250 VDC | 28 V | 36 V | Through Hole | 9-DIP Module, 1/2 Brick | ITE (Commercial) | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 12.7 mm | 2.4 in | 61 mm | 0.5 in | 58.4 mm | 2.3 " |
Murata Power Solutions Inc. PAH-28/12.5-D24PB-C | Isolated Module | 1 | 85 °C | -40 °C | Active High, Enable | 18 V | 350 W | 12.5 A | 92.5 % | 2250 VDC | 28 V | 36 V | Through Hole | 9-DIP Module, 1/2 Brick | ITE (Commercial) | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 12.7 mm | 2.4 in | 61 mm | 0.5 in | 58.4 mm | 2.3 " |
Murata Power Solutions Inc. PAH-28/12.5-D48PB-C | Isolated Module | 1 | 85 °C | -40 °C | Active High, Enable | 36 V | 350 W | 12.5 A | 93 % | 2250 VDC | 28 V | 75 V | Through Hole | 9-DIP Module, 1/2 Brick | ITE (Commercial) | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 12.7 mm | 2.4 in | 61 mm | 0.5 in | 58.4 mm | 2.3 " |
Description
General part information
PAH-28 Series
Isolated Module DC DC Converter 1 Output 28V 12.5A 36V - 75V Input
