Description
General part information

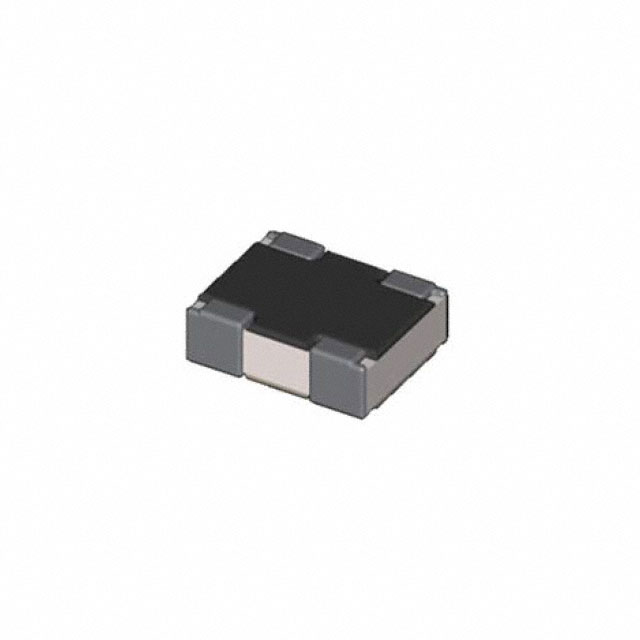

RF062PJ152CS
1.5k Ohm ±5% 31.25mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 0302 (0805 Metric), Long Side Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | RF062PJ152CS |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) | 0.013 in |
| Mounting Type | Surface Mount |
| Number of Pins | 4 |
| Number of Resistors | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Long Side Terminals, 0302 (0805 Metric) |
| Power Per Element | 31.25 mW |
| Resistance | 1.5 kOhms |
| Size / Dimension Length | 0.031 in |
| Size / Dimension Width | 0.024 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
