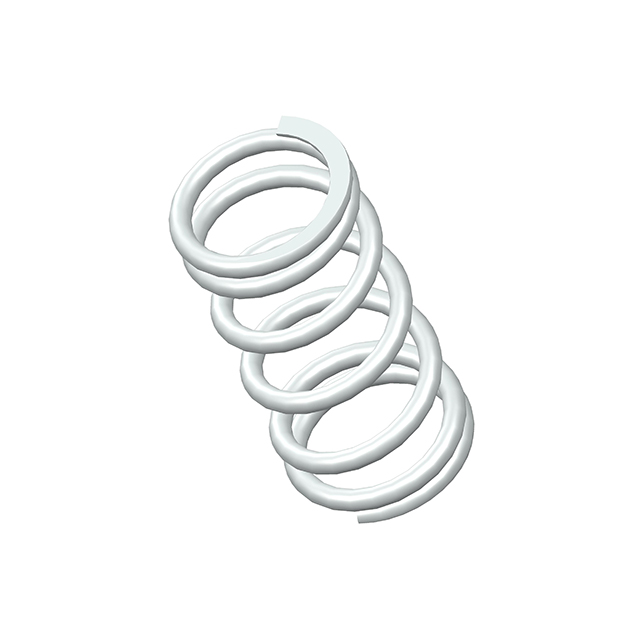

71142SCS
ActiveCentury Spring Corp
COMP O= .360,L= .75,W= .042
71142SCS
ActiveCentury Spring Corp
COMP O= .360,L= .75,W= .042
Description
General part information
71142SCS
COMP O= .360,L= .75,W= .042
Technical Specifications
Parameters and characteristics for this part
| Specification | 71142SCS |
|---|---|
| Diameter - Inside | 0.276 in |
| Diameter - Outside | 0.36 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.75 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 26 lbs/in |
| Type | Compression |
| Wire Diameter | 0.042 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
