Description
General part information
1420832

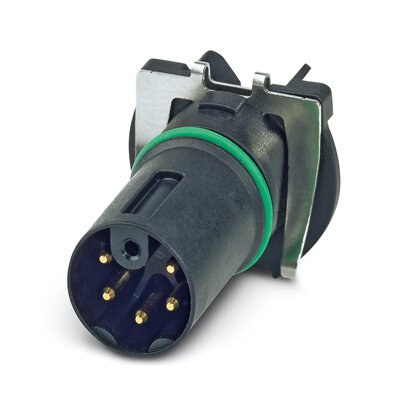

6 (5 Power + PE) Position Circular Connector Insert, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1420832 |
|---|---|
| Connector Type | Insert, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 8 A |
| Features | Board Guide |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Nylon 4/T, Polyamide, PA4T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | M |
| Position Types | PE, Power |
| Shell Size - Insert | M12-6 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 630 V |
