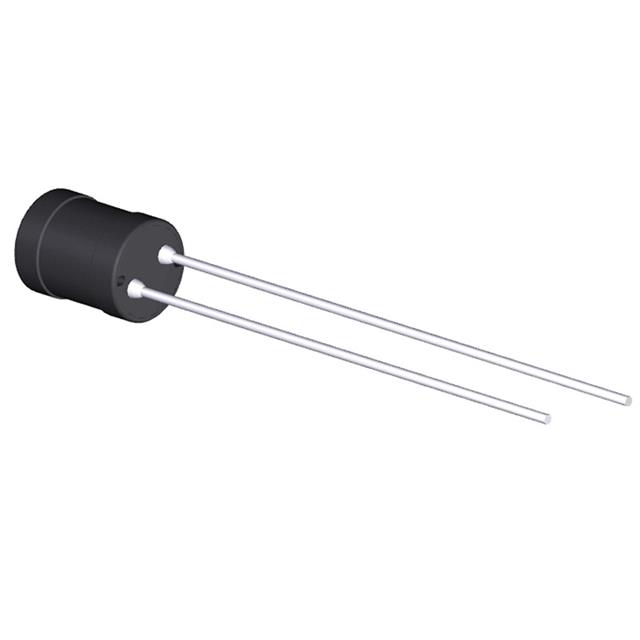

22R105C
ActiveFIXED IND 1MH 170MA 3.63 OHM TH
Deep-Dive with AI
Search across all available documentation for this part.
22R105C
ActiveFIXED IND 1MH 170MA 3.63 OHM TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 22R105C | 22R Series |
|---|---|---|
| Current Rating (Amps) | - | 0.033 - 990 A |
| DC Resistance (DCR) | - | 1.21 - 830 mOhm |
| DC Resistance (DCR) | - | 1.65 - 390 mOhm |
| Frequency - Self Resonant | - | 1.2 - 950 MHz |
| Height - Seated (Max) | - | 0.413 in |
| Height - Seated (Max) | - | 10.5 mm |
| Height - Seated (Max) | - | 0.311 in |
| Height - Seated (Max) | - | 7.9 mm |
| Inductance | - | 1 - 3300 µH |
| Mounting Type | - | Through Hole, Surface Mount |
| null | - | |
| Operating Temperature | - | 70 - 85 °C |
| Operating Temperature | - | -40 - -25 °C |
| Package / Case | - | Radial, Vertical Cylinder, Nonstandard |
| Q @ Freq | - | 1 - 500 |
| Shielding | - | Unshielded |
| Size / Dimension | - | 0.276 in |
| Size / Dimension | - | 0.307 in |
| Size / Dimension | - | 7 mm |
| Size / Dimension | - | 7.8 mm |
| Tolerance | - | 10 % |
| Type | - | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
22R Series
INDUCTOR, 2200R SERIES, 15 µH, 1.35 A, 0.07 OHM, ± 10%
| Part | Mounting Type | Tolerance | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Q @ Freq | Shielding | Current Rating (Amps) | DC Resistance (DCR) [Max] | Type | Frequency - Self Resonant | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 22R153C | Through Hole | 10 % | Radial, Vertical Cylinder | 0.413 in | 10.5 mm | 60, 500 kHz | Unshielded | 1.35 A | 70 mOhm | Wirewound | 19.4 MHz | 70 °C | -25 °C | 15 µH | |||||||
Murata Power Solutions Inc. 22R105C | |||||||||||||||||||||
Murata Power Solutions Inc. 22R683C | Through Hole | 10 % | Radial, Vertical Cylinder | 0.413 in | 10.5 mm | 90, 100 kHz | Unshielded | 770 mA | 280 mOhm | Wirewound | 8.7 MHz | 70 °C | -25 °C | 68 µH | |||||||
Murata Power Solutions Inc. 22R684C | |||||||||||||||||||||
Murata Power Solutions Inc. 22R683MC | Surface Mount | 10 % | Nonstandard | Unshielded | 0.84 A | 280 mOhm | Wirewound | 85 °C | -40 °C | 68 µH | 0.311 in | 7.9 mm | 0.276 in | 0.307 in | 7 mm | 7.8 mm | |||||
Murata Power Solutions Inc. 22R225MC | Surface Mount | 10 % | Nonstandard | Unshielded | 140 mA | 8.58 Ohm | Wirewound | 85 °C | -40 °C | 2.2 mH | 0.311 in | 7.9 mm | 0.276 in | 0.307 in | 7 mm | 7.8 mm | |||||
Murata Power Solutions Inc. 22R475C | |||||||||||||||||||||
Murata Power Solutions Inc. 22R335MC | |||||||||||||||||||||
Murata Power Solutions Inc. 22R336C | Through Hole | 10 % | Radial, Vertical Cylinder | 0.413 in | 10.5 mm | 50 kHz, 95 | Unshielded | 36 mA | 118.8 Ohm | Wirewound | 280 kHz | 70 °C | -25 °C | 33 mH | |||||||
Murata Power Solutions Inc. 22R683C |
Description
General part information
22R Series
The 2200R series Radial Lead Inductor with hot dipped tin pin finish. The general purpose range of inductor is suitable for low to medium current applications. The small footprint makes them ideal for high density applications where a chip inductor will not cope with the power requirement. The maximum DC current occurs when either the inductance falls to 90% of its nominal value or when its temperature rise reaches 30°C, whichever is sooner.
