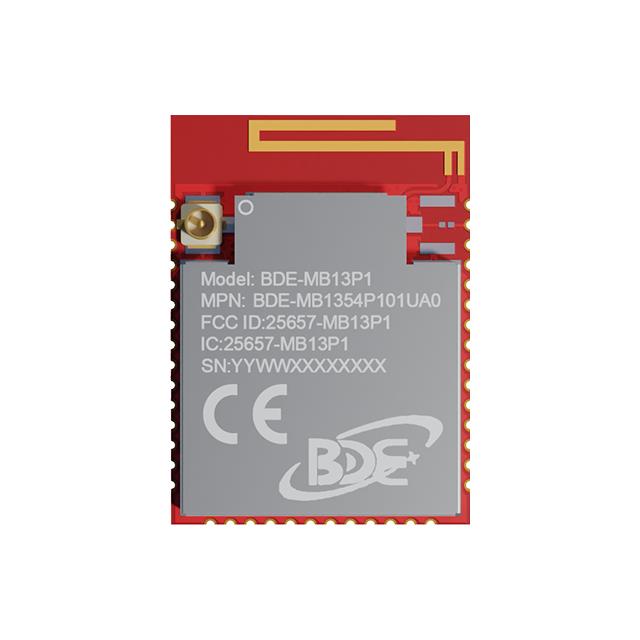

BDE-MB1354P101UA0
802.15.4, Bluetooth, General ISM < 1GHz 6LoWPAN, Bluetooth v5.2, Thread, Wireless M-Bus, Wi-SUN, Zigbee® Transceiver Module 2.4GHz Integrated, PCB +U.FL Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BDE-MB1354P101UA0 |
|---|---|
| Antenna Type | PCB +U.FL, Integrated |
| Current - Receiving (Max) | 6.9 mA |
| Current - Receiving (Min) | 5.8 mA |
| Current - Transmitting (Max) | 69 mA |
| Current - Transmitting (Min) | 9.6 mA |
| Data Rate | 125 kBaud |
| Frequency | 2.4 GHz |
| Memory Size | 256 kB |
| Modulation | 2-GFSK, O-QPSK, 4-FSK, OOK, 2-FSK, MSK, 4-GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 42-SMD Module |
| Power - Output | 20 dBm |
| Protocol | Bluetooth v5.2, Zigbee®, Thread, Wireless M-Bus, Wi-SUN, 6LoWPAN |
| RF Family/Standard | General ISM < 1GHz, 802.15.4, Bluetooth |
| Sensitivity | -121 dBm |
| Serial Interfaces | SPI, UART, I2S, I2C, GPIO, ADC |
| Utilized IC / Part | CC1354P10 |
| Voltage - Supply (Maximum) | 3.8 V |
| Voltage - Supply (Minimum) | 1.8 V |
