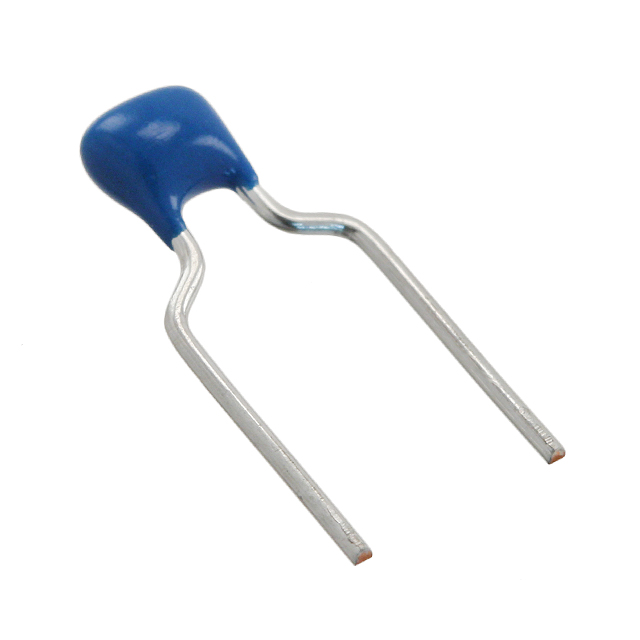

FK24X5R0J226MR006
NRNDTDK Corporation
CAP CER 22UF 6.3V X5R RADIAL
FK24X5R0J226MR006
NRNDTDK Corporation
CAP CER 22UF 6.3V X5R RADIAL
Description
General part information
FK24X5R0J226MR006
22 µF ±20% 6.3V Ceramic Capacitor X5R Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | FK24X5R0J226MR006 |
|---|---|
| Applications | General Purpose |
| Capacitance | 22 µF |
| Height - Seated (Max) | 0.217 in |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.098 in |
| Temperature Coefficient | X5R |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
