Description
General part information

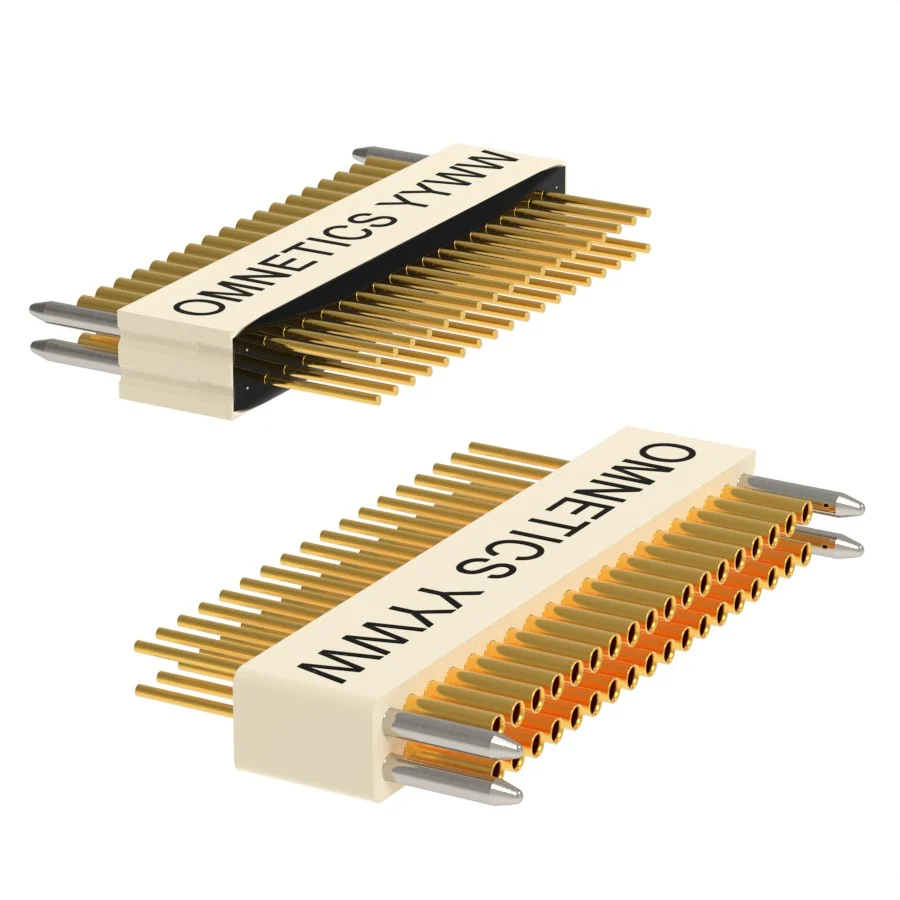

A79023-001
36 Position Receptacle Connector 0.025" (0.64mm) Through Hole Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | A79023-001 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead, Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Length - Post | 0.1 in |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating | 1 A |
| Current Rating (Per Contact) | 1 A |
| Fastening Type | Push-Pull |
| Features | Guide Pin |
| Insulation Color | Natural |
| Insulation Height | 0.07 in |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.025 in |
| Row Spacing - Mating | 0.03 in |
| Style | Board, Cable/Wire |
| Termination | Solder |
