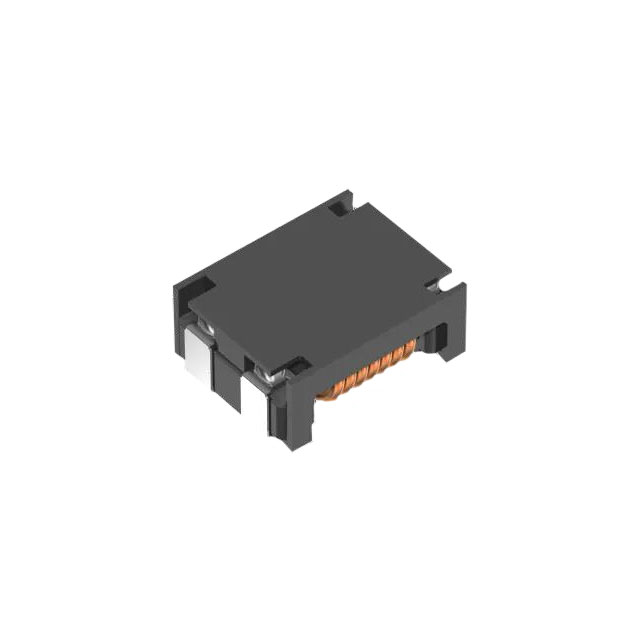

ACM90V-152-2PL-TL00
ActiveTDK Corporation
COMMON MODE FILTER, 9MM X 7MM X 4.5MM ROHS COMPLIANT: YES
ACM90V-152-2PL-TL00
ActiveTDK Corporation
COMMON MODE FILTER, 9MM X 7MM X 4.5MM ROHS COMPLIANT: YES
Description
General part information
ACM90V-152-2PL-TL00
2 Line Common Mode Choke Surface Mount 1.5 kOhms @ 100 MHz 3.6A DCR 16mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | ACM90V-152-2PL-TL00 |
|---|---|
| Current Rating (Max) | 3.6 A |
| DC Resistance (DCR) (Max) | 16 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.177 " |
| Impedance | 1500 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.354 in |
| Size / Dimension Width | 0.276 in |
| Voltage Rating - DC | 80 VDC |
