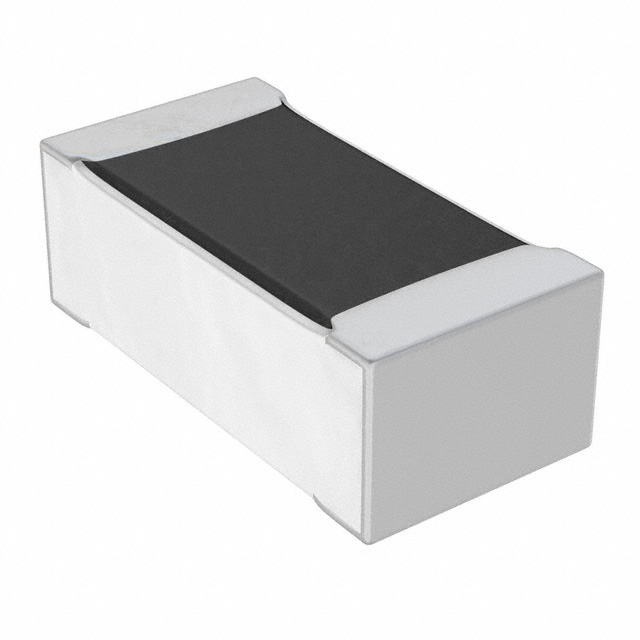

PCF0402R-7K5BT1
UnknownTT Electronics/Welwyn
RES SMD 7.5K OHM 0.1% 1/16W 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCF0402R-7K5BT1
UnknownTT Electronics/Welwyn
RES SMD 7.5K OHM 0.1% 1/16W 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCF0402R-7K5BT1 |
|---|---|
| Composition | Metal Film |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Power (Watts) | 0.0625 W |
| Power (Watts) | 0.063 W |
| Resistance | 7.5 kOhms |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [x] | 0.039 in |
| Size / Dimension [y] | 0.02 in |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | 0402 |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.70 | |
| 10 | $ 0.47 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.25 | |||
| 500 | $ 0.18 | |||
Description
General part information
PCF0402R-7K5BT1
7.5 kOhms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Metal Film
