Description
General part information

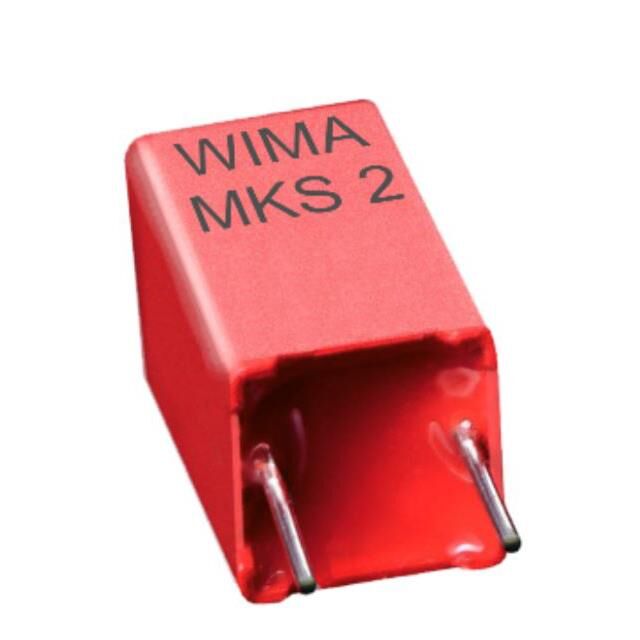

MKS2G022201C00JC00
0.022 µF Film Capacitor 200V 400V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MKS2G022201C00JC00 |
|---|---|
| Applications | Automotive |
| Capacitance | 0.022 µF |
| Dielectric Material | Metallized, Polyester, Polyethylene Terephthalate (PET) |
| Height - Seated (Max) | 0.335 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.138 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 200 Vpk |
| Voltage Rating - DC | 400 V |
