Description
General part information

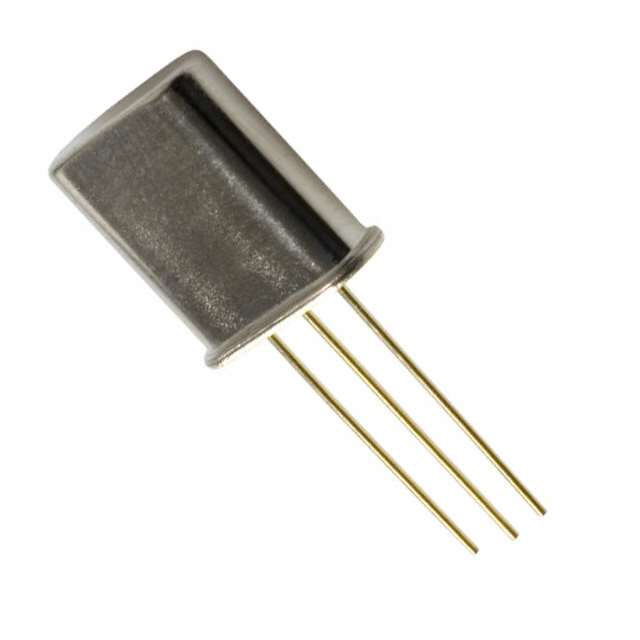

ECS-10.7-7.5A
10.7 MHz Center 1.8 kOhms Monolithic Crystal Filter Through Hole 1.5dB 7.5 kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-10.7-7.5A |
|---|---|
| Bandwidth | 7.5 kHz |
| Frequency - Center | 10.7 MHz |
| Height (Max) | 0.441 in |
| Impedance | 1.8 kOhm |
| Insertion Loss | 1.5 dB |
| Mounting Type | Through Hole |
| Number of Poles | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | HC-49/U |
| Ripple (dB) | 0.5 dB |
| Size / Dimension Length | 0.437 in |
| Size / Dimension Width | 0.185 in |
