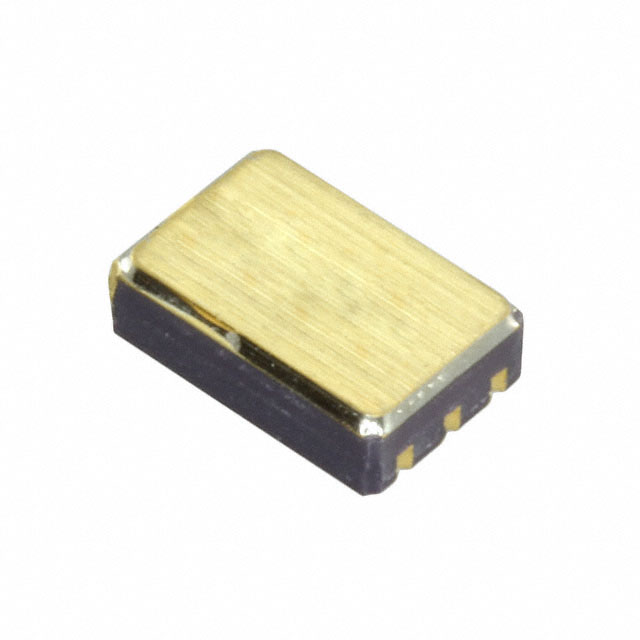

OLS449
ActiveSkyworks Solutions Inc.
OPTOISO 1KV 40MA SMT
OLS449
ActiveSkyworks Solutions Inc.
OPTOISO 1KV 40MA SMT
Description
General part information
OLS449
Optoisolator Transistor with Base Output 1000VDC 1 Channel 6-CLCC (6.22x4.32)
Technical Specifications
Parameters and characteristics for this part
| Specification | OLS449 |
|---|---|
| Current - DC Forward (If) (Max) | 40 mA |
| Current - Output / Channel | 50 mA |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Output Type | Transistor with Base |
| Package / Case | 6-CLCC |
| Package Length | 6.22 mm |
| Package Name | 6-CLCC |
| Package Width | 4.32 mm |
| Rise / Fall Time (Max) | 25 µs |
| Rise / Fall Time (Typ) | 25 µs |
| Voltage - Forward (Vf) (Max) | 1.7 V |
| Voltage - Isolation | 1000 Vrms |
| Voltage - Output (Max) | 65 V |
