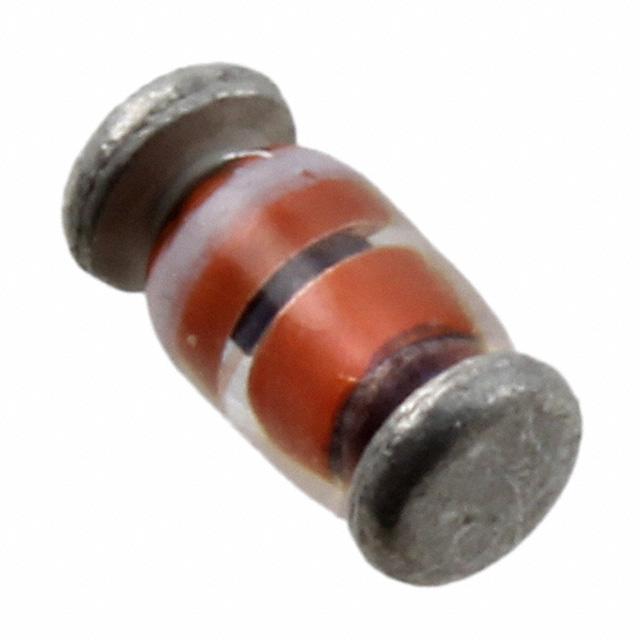

1N485BUR

Active

Microchip Technology

SIGNAL OR COMPUTER DIODE DO-213AA ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Microchip Technology

SIGNAL OR COMPUTER DIODE DO-213AA ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1N485BUR	1N485 Series

Current - Average Rectified (Io)	100 mA	100 - 200 mA
Current - Reverse Leakage @ Vr	-	1 µA
Grade	-	Military
Mounting Type	Surface Mount	Through Hole, Surface Mount
Operating Temperature - Junction [Max]	175 ░C	175 ░C
Operating Temperature - Junction [Min]	-65 C	-65 C
Package / Case	DO-213AA	Axial, DO-35, DO-204AH, DO-204AA, DO-7, DO-213AA
Qualification	-	MIL-PRF-19500/118
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	DO-213AA	DO-204AH (DO-35), DO-7, DO-213AA
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	180 V	180 - 200 V
Voltage - Forward (Vf) (Max) @ If	1 V	1 V

Switching Diode 180V, 100mA Through Hole DO-7

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io)	Speed	Speed	Mounting Type	Package / Case	Grade	Qualification
Microchip Technology 1N485B	1 V	175 ░C	-65 C	200 V	Standard	1 µA	DO-204AH (DO-35)	200 mA	Any Speed	200 mA	Through Hole	Axial, DO-204AH, DO-35
Microchip Technology 1N485A	1 V	175 ░C	-65 C	180 V	Standard		DO-7	100 mA	Any Speed	200 mA	Through Hole	Axial, DO-204AA, DO-7
Microchip Technology 1N485	1 V	175 ░C	-65 C	180 V	Standard		DO-7	100 mA	Any Speed	200 mA	Through Hole	Axial, DO-204AA, DO-7
Microchip Technology JANTX1N485B	1 V	175 ░C	-65 C	180 V	Standard		DO-204AH (DO-35)	200 mA	Any Speed	200 mA	Through Hole	Axial, DO-204AH, DO-35	Military	MIL-PRF-19500/118
Microchip Technology 1N485BUR	1 V	175 ░C	-65 C	180 V	Standard		DO-213AA	100 mA	Any Speed	200 mA	Surface Mount	DO-213AA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	192	$ 4.26
Microchip Direct	N/A	1	$ 4.61
Newark	Each	100	$ 4.28
		500	$ 4.11
