DLC0240AWM04CB-1
ActiveDLC Display Co.,Ltd
2.4" TFT 240X320
DLC0240AWM04CB-1
ActiveDLC Display Co.,Ltd
2.4" TFT 240X320
Description
General part information
DLC0240AWM04CB-1

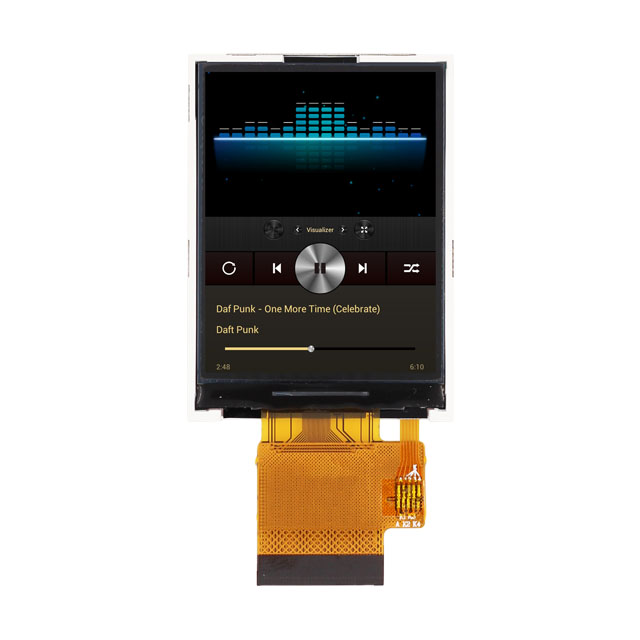

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color MCU 2.4" (60.96mm) 240 x 320
Technical Specifications
Parameters and characteristics for this part
| Specification | DLC0240AWM04CB-1 |
|---|---|
| Backlight | LED |
| Controller Type | ST7789V |
| Diagonal Screen Size | 2.4 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch Height | 0.15 mm |
| Dot Pitch Width | 0.15 mm |
| Dot Pixels (Horizontal) | 240 pixels |
| Dot Pixels (Vertical) | 320 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | MCU |
| Viewing Area Height | 52.46 mm |
| Viewing Area Width | 40.32 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
